In Stock

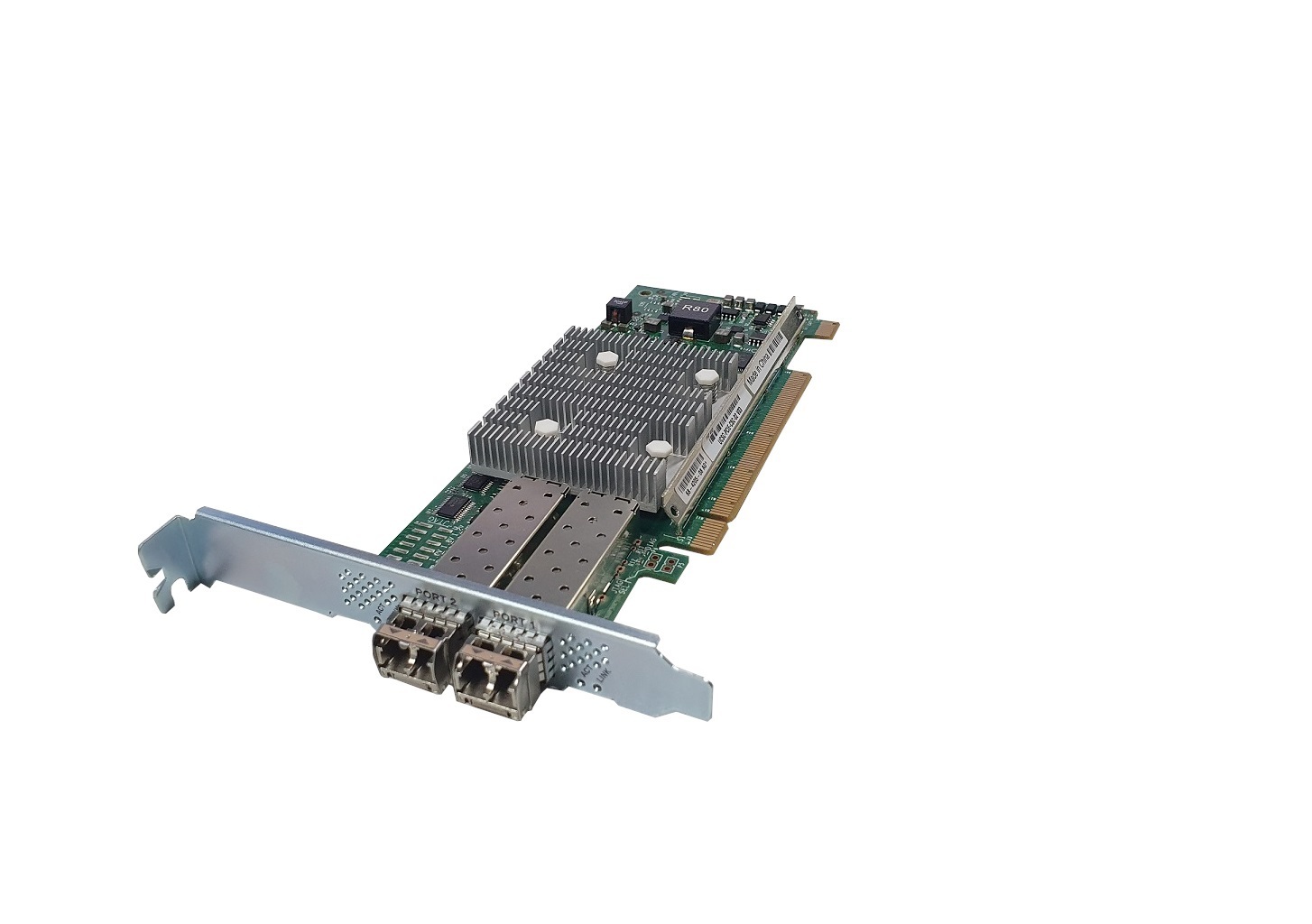

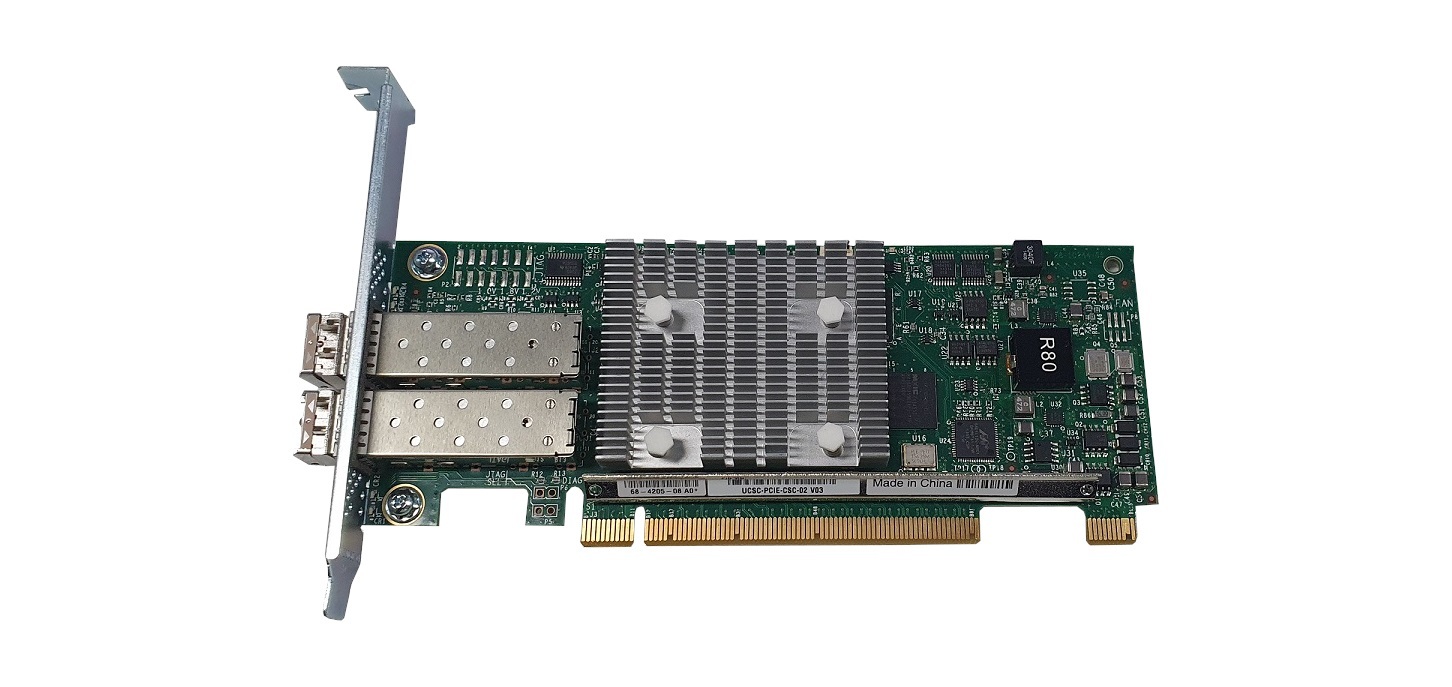

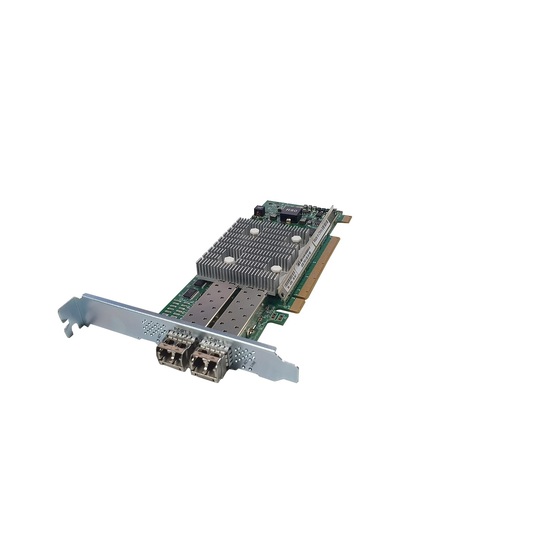

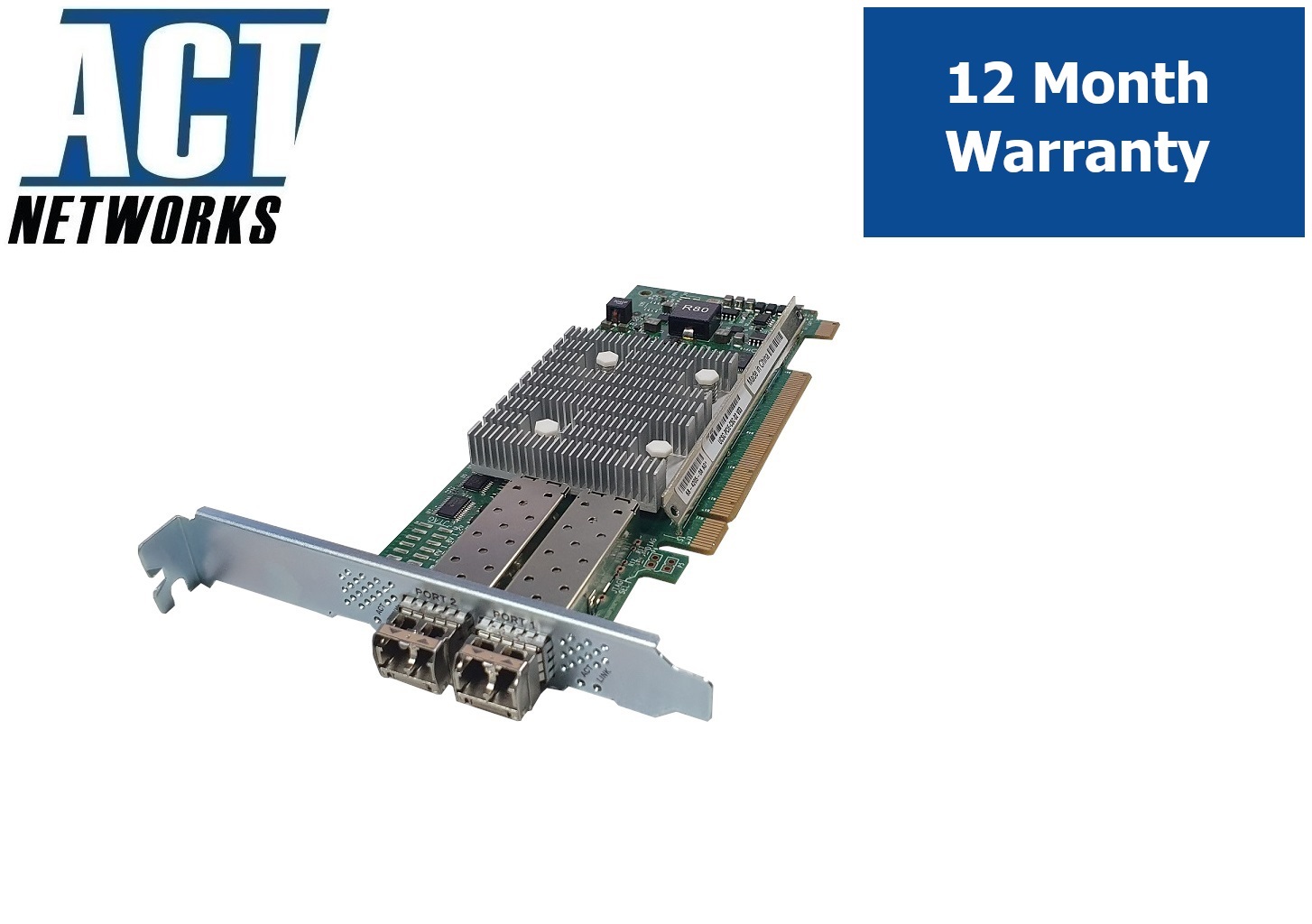

Cisco UCSC-PCIE-CSC-02 VIC 1225 Dual Port 10Gb SFP+ CNA High Profile with SFPs


Available QTY: 9

Calculate Shipping

Brand Cisco
Model Virtual Interface Card 1225
Part Number UCSC-PCIE-CSC-02
Device Type VIC 1225 10Gb SFP+ CNA
Bracket Profile High Profile
Connectors SFP
Transceiver module 2x Cisco SFP-10G-SR
Chipset Intel 82599
BUS Type PCI Express 2.0 (5.0 GT/s)
BUS Speed x8
Number of Ports 2
Data Transfer Rate  10Gb
Thermal Solution passive (Fanless heatsink)
Compatibility  Supported on UCS Cisco only:
- C260 M2
- C460 M2
- C220 M3
- C240 M3
- C22   M3
- C24   M3
- C220 M4
- C240 M4
- C460 M4
Item Condition Used
Qty 1

Designed for use only on Cisco UCS C-Series
Rack Servers.

Not compatible in other systems other than the compatibility system outlined above.


Cisco UCS Virtual Interface Card (VIC) 1225 is a dual-port Enhanced Small Form-Factor Pluggable (SFP+) 10 Gigabit Ethernet and Fibre Channel over Ethernet (FCoE)-capable PCI Express (PCIe) card designed exclusively for Cisco UCS C-Series Rack Servers. Incorporating converged network adapter (CNA) technology, policy-based, stateless, agile server infrastructure that can present up to 256 PCIe standards-compliant interfaces to the host that can be dynamically configured as either network interface cards (NICs) or host bus adapters (HBAs). In addition, the Cisco UCS VIC 1225 supports Cisco Data Center Virtual Machine Fabric Extender (VM-FEX) technology, which extends the Cisco UCS fabric interconnect ports to virtual machines, simplifying server virtualization deployment.

  • Card
  • Tax Invoice
  • 12-Month Return to Base Warranty
