|Device Type||Full Profile Storage controller (RAID)- plug-in card|
|Interface Support||SAS 12Gb/s, SATA 6Gb/s|
|Slot Support||PCIe Adapter|
|SAS Connectors||1x Mini SAS Cable (7W5N8) - internal|
|Cache Memory Size||N/A|
|Write Back Cache||N/A|
|Device Support||Up to 64 Non-RAID Mode (JBOD)
Up to 32 RAID Mode (RAID 1:2 Per Volume plus Hot Spare
|RAID Support||Hardware RAID|
|Designed For||Compatible with T5810/ T7910/ T7910 XL|
|Notes||- 1x Mini SAS cable included|

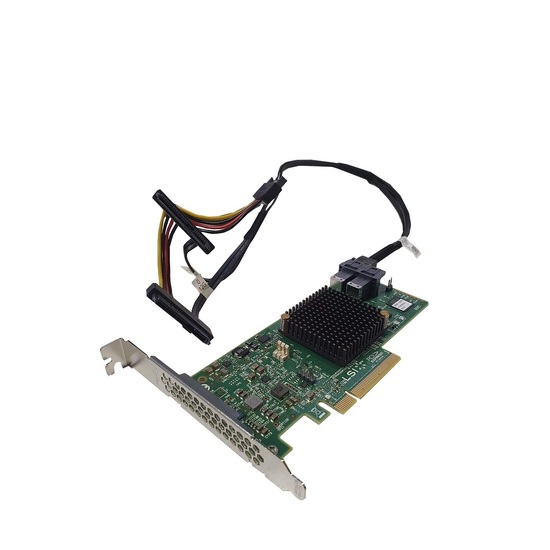

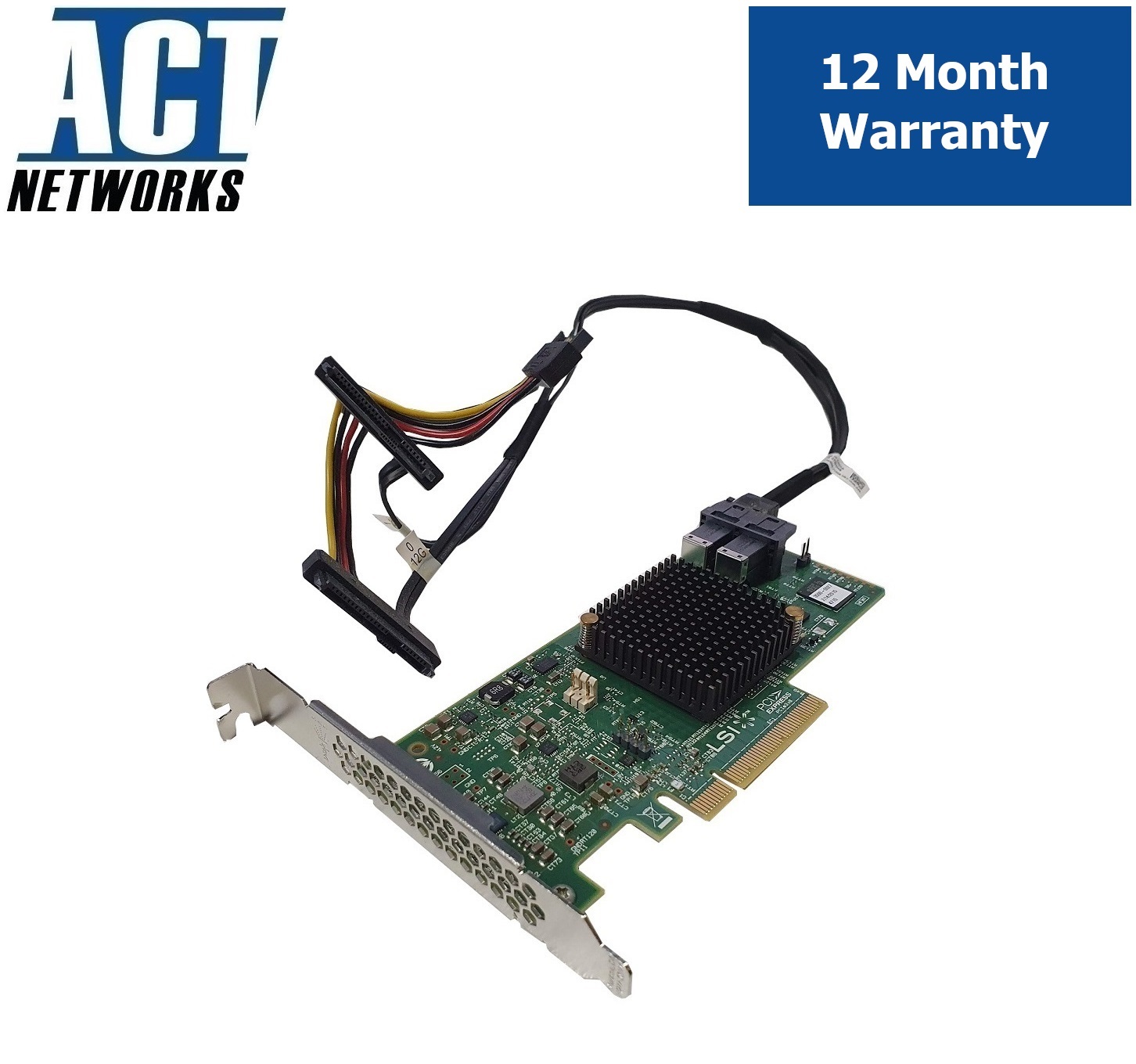

The MegaRAID Controller from Dell offers reliability and performance in addition to providing management with the tolerant disk subsystem failures. This MegaRAID controller offers expandable storage capacity to improve the performance of your server systems. The double module channel provides high-speed connectivity.
