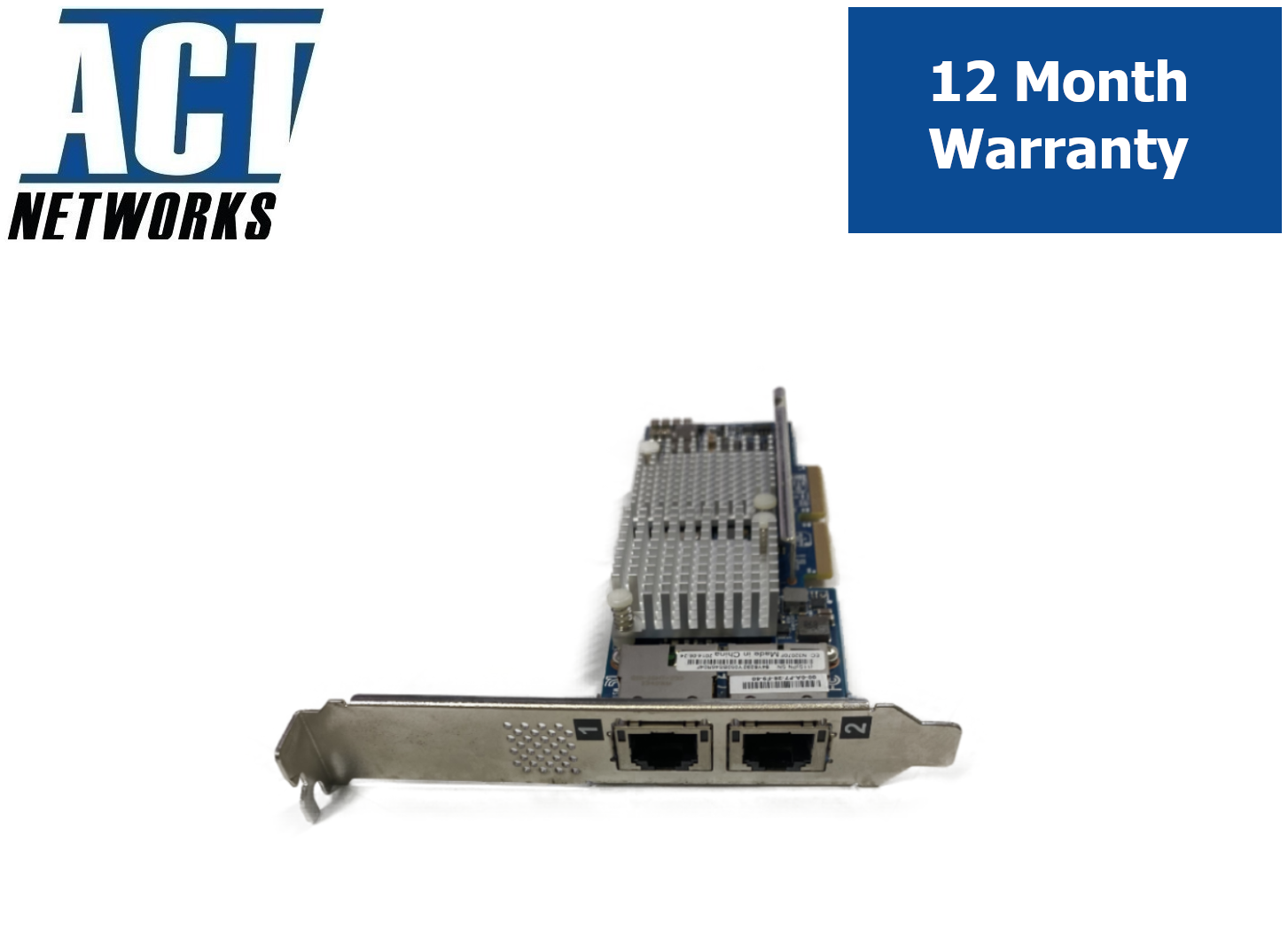

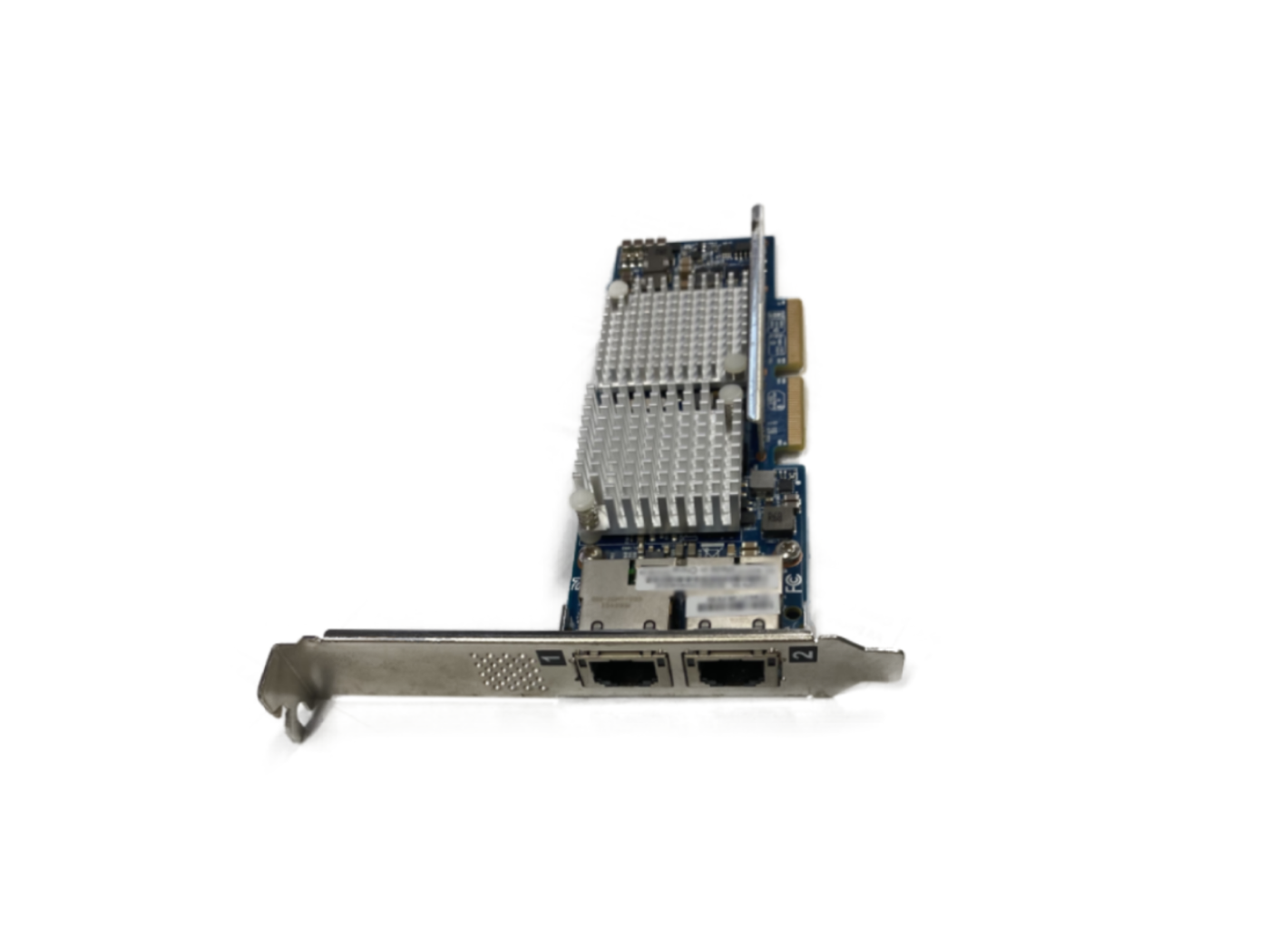

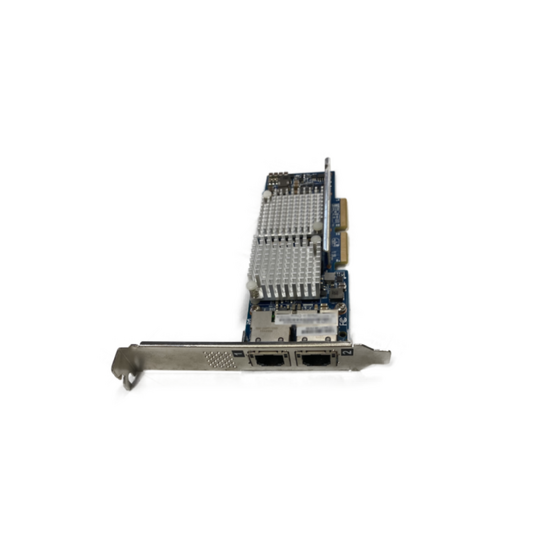

Lenovo 94Y5232 NetXtreme II ML2 Dual Port 10GbaseT High Profile for System x


Available QTY: 1

Calculate Shipping

Brand Lenovo / IBM
Model Broadcom NetXtreme II
Part Number 94Y5232, 00D2026
Device Type 2x10GBASE-T Ethernet Network Adapter
Bracket Profile High Profile
Connection Ports 2x RJ-45 10/100/1000/10GBase-T
Chipset Broadcom BCM57810
Form Factor ML2
BUS Speed PCIe x8 Gen 2
Number of Ports 2
Data Transfer Rate  10Gbps
Thermal Solution Passive (Fanless heatsink)
Compatibility  System x3950 X6, x3650 M5,
x3550 M5, x3850 X6
Item Condition Used
Qty 1


Broadcom NetXtreme II Dual Port 10GBase-T Adapter for System x features a robust, standards-based 10GBase-T adapter in a low-profile PCI Express form factor. It enables affordable 10-Gigabit Ethernet (10 GbE) network performance with cost-effective RJ-45 connections for distances up to 100 meters. It is compatible with the installed base of GbE switching and cabling infrastructure commonly deployed today.


The Broadcom NetXtreme II 10GBase-T adapter family provide:

A turnkey dual-port 10 GbE adapter solution operating at 100 m over CAT6a or CAT7 unshielded twisted pair (UTP) cable Interoperable with IEEE standard devices operating at 10 Mbps, 100 Mbps, and 1 Gbps over existing CAT5 UTP A dependable, performance-focused solution that can be optimized for high throughput and high I/O per second, with low CPU utilization Broadcom, offload architecture minimizes the CPU overhead, eliminating competition with the host application for host resources and freeing valuable CPU cycles for processing user applications:

TCP offload engine (TOE) accelerates network data transfers, with high I/O-per-second and high bandwidth. Receive side scaling (RSS) is used to avoid bottlenecks by distributing network processing across multiple CPUs. Adaptive interrupt coalescing streamlines interrupt processing. Message Signal Interrupt (MSI/MSI-X) allows interrupt distribution in multi-CPU systems. Broadcom’s 10GBASE-T PHY is based on highly advanced digital signal processing to allow robust operation over unshielded twisted pair (UTP) wiring. It is a highly integrated solution that combines enhanced analog front ends with digital adaptive equalizers, ADCs, phase-locked loops, line drivers, LDPC encoders and decoders, echo cancellers, crosstalk cancellers, and all required support circuitry.

The Broadcom NetXtreme II ML2 Dual Port 10GbaseT is a special mezzanine LAN-on-motherboard (mezzanine LOM) form factor adapter that also supports the Network Controller Sideband Interface (NC-SI) for communication with the server's onboard IMM2 management processor. This support enables sharing the network interface with the IMM2 and the operating system, thereby eliminating the need for a separate management network

  • Card
  • Tax Invoice
  • 12-Month Return to Base Warranty
