In Stock

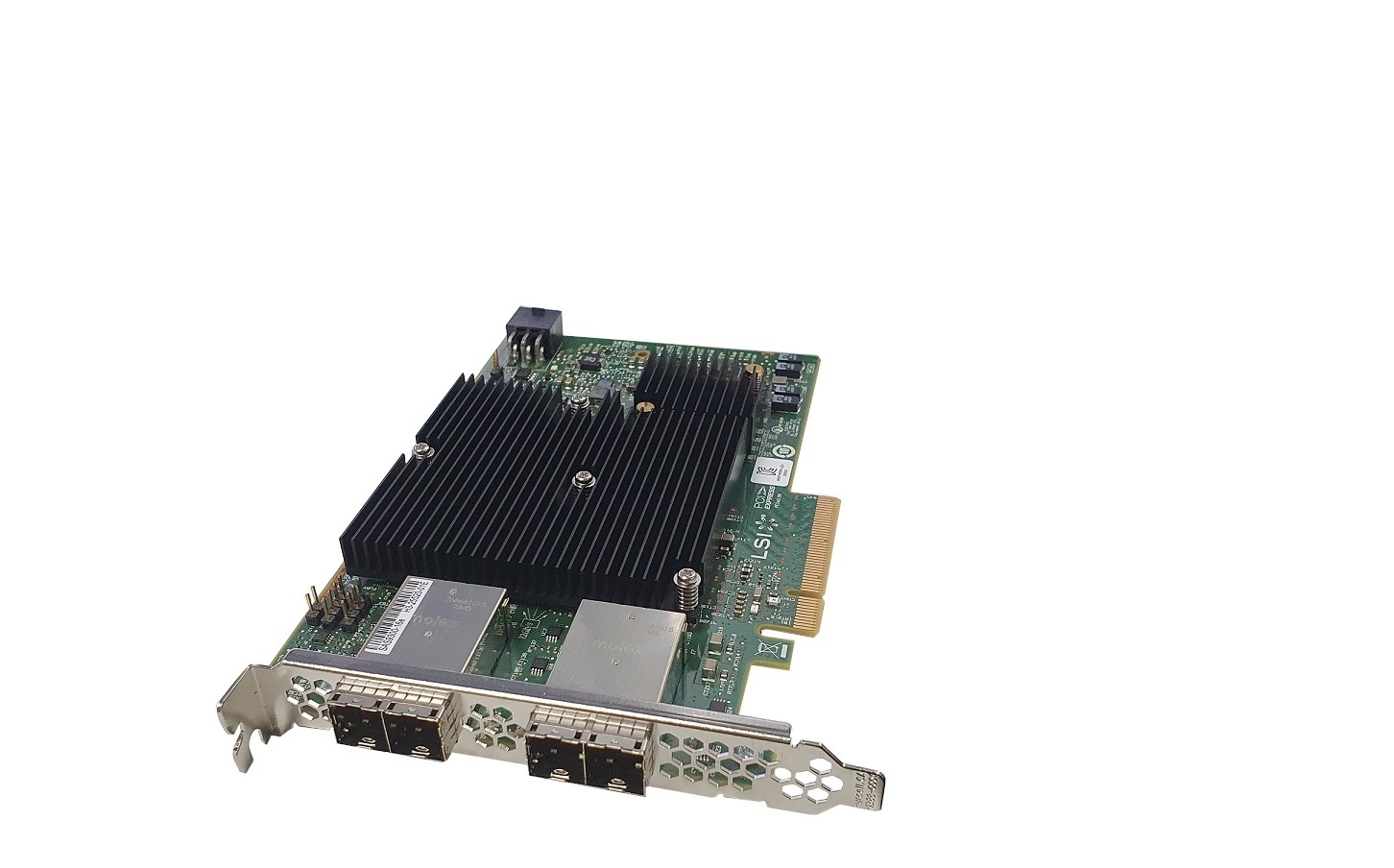

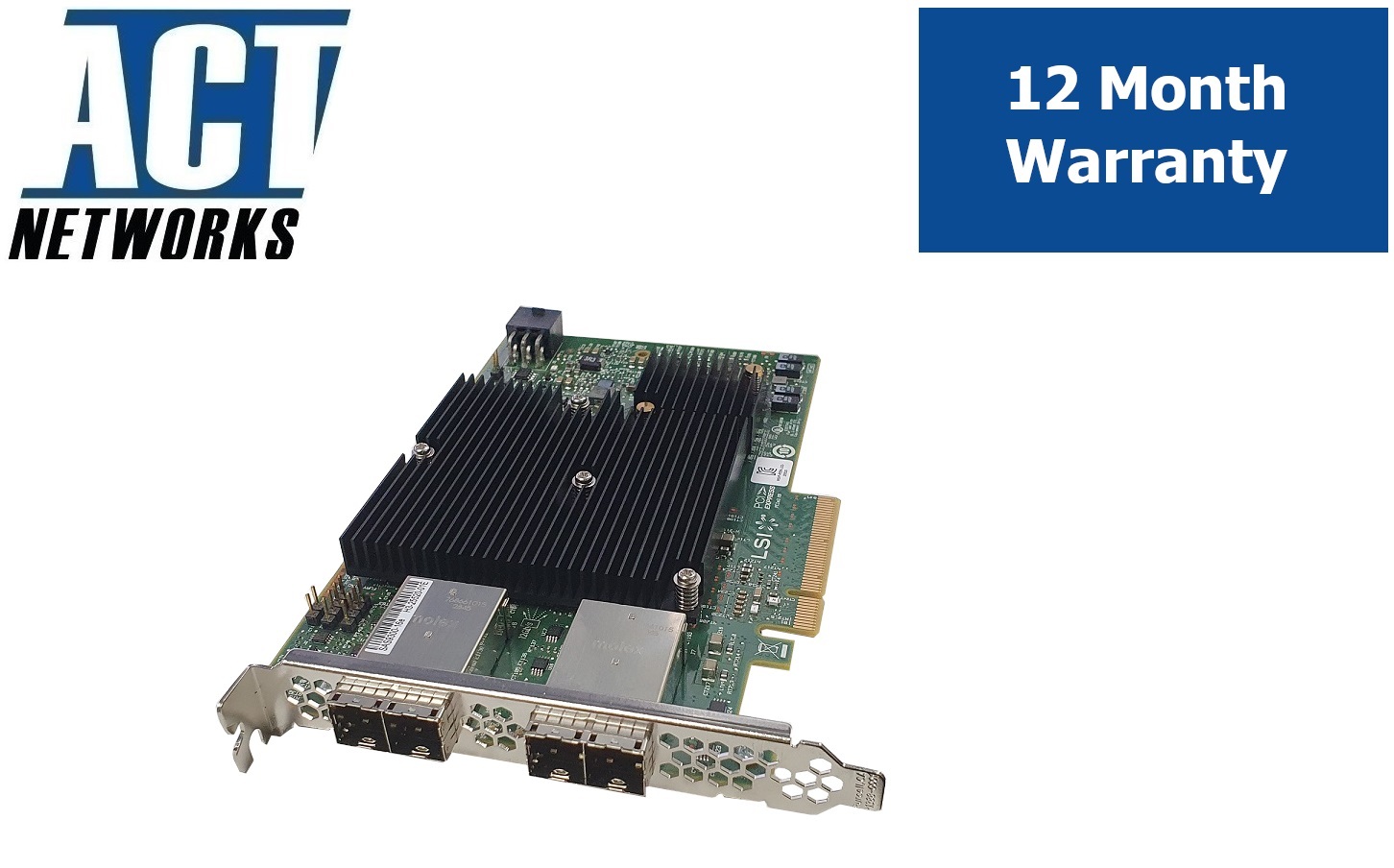

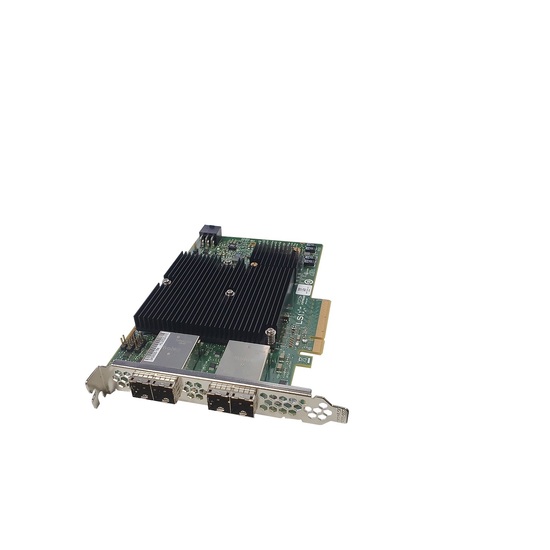

LSI Quad Port SAS9300-16e H3-25520-01E PCIe 3.0 x8 SAS3 12G High Height HBA


Available QTY: 8

Calculate Shipping

Brand LSI
Model SAS9300-16e
Part Number  H3-25520-01E
Product Type Host Bus Adapter
Bracket Profile  High Height
Host Bus PCIe 3.0 x8
Chipset  LSI SAS3008
Data Transfer Rates 12 Gbps
Interface  SATA 6Gb/s / SAS 12Gb/s
Port Connectors Four mini-SAS HD external connectors (SFF8644)
SAS Cables None Included
Cable Support Passive Copper, Active Copper
Device Support 1024 Non-RAID SATA/SATA devices per controller
Designed For JBOD Systems
Item Condition Used
Qty 1

- No Mini SAS cable included


SAS 9300-16e
16-Port, 12Gb/s SAS+SATA to PCI Express Host Bus Adapter

SAS 9300-16e 16-port, 12Gb/s SAS host bus adapter provides increased connectivity and high performance for high-end servers and storage applications. The SAS 9300-16e HBA is based on the SAS 3008 IO controller that integrates SAS and PCI Express (PCIe) technology and can achieve 2 million IOPs. The SAS 9300-16e has four (x4) external mini SAS HD connectors (SFF8644) and supports 8 PCIe lanes that comply with the latest PCIe 3.0 specification with 8Gb/s per lane in a single direction. The adapter also supports 16 individual SAS ports operating at 12Gb/s. The adapter is backward compatible with previous PCIe and SAS generations through automatic negotiation and provides SAS data transfer rates of 12, 6, and 3Gb/s per lane, and SATA data transfer rates at 6 and 3Gb/s per lane.

  • Card
  • Tax Invoice
  • 12-Month Return to Base Warranty
