Sold Out

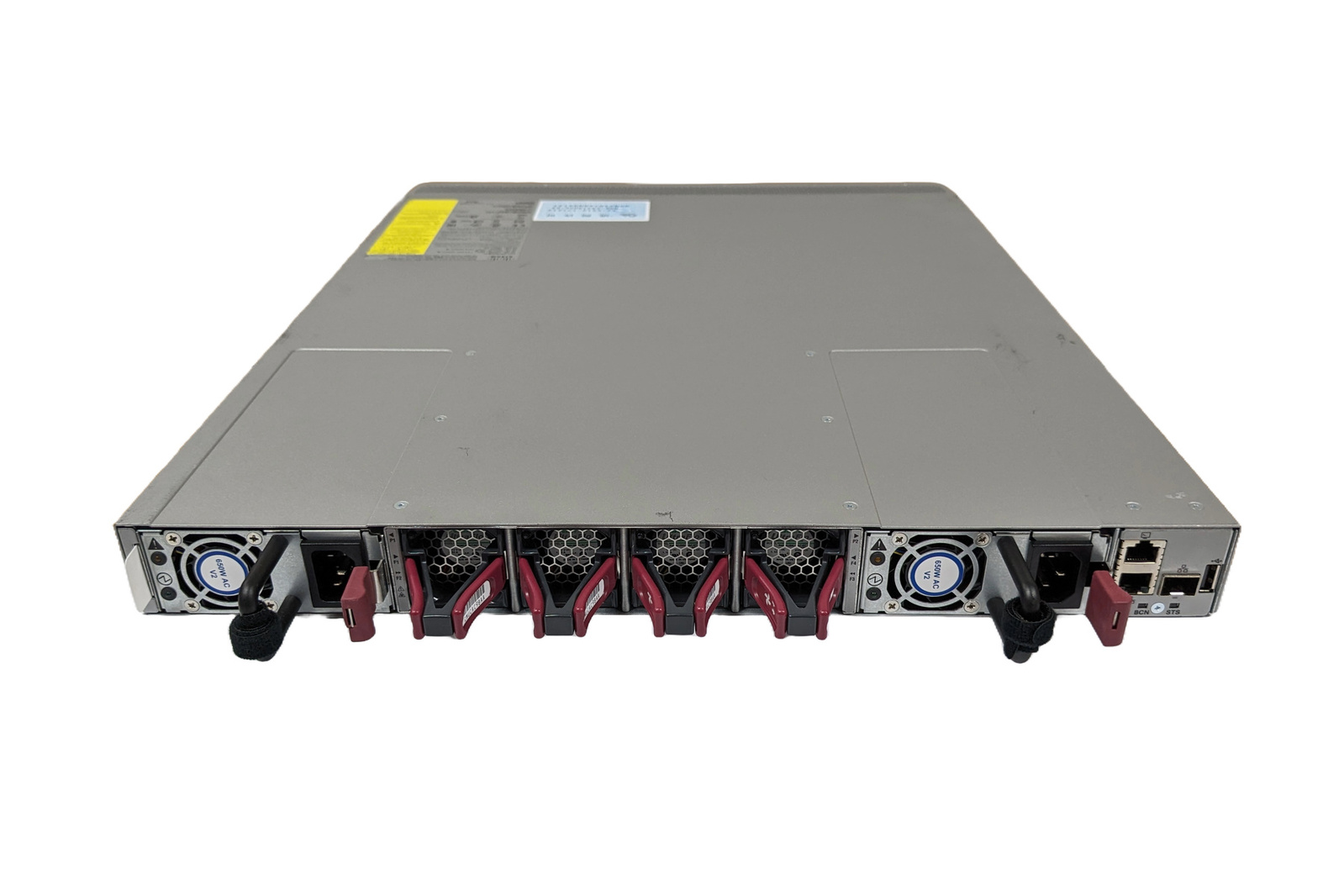

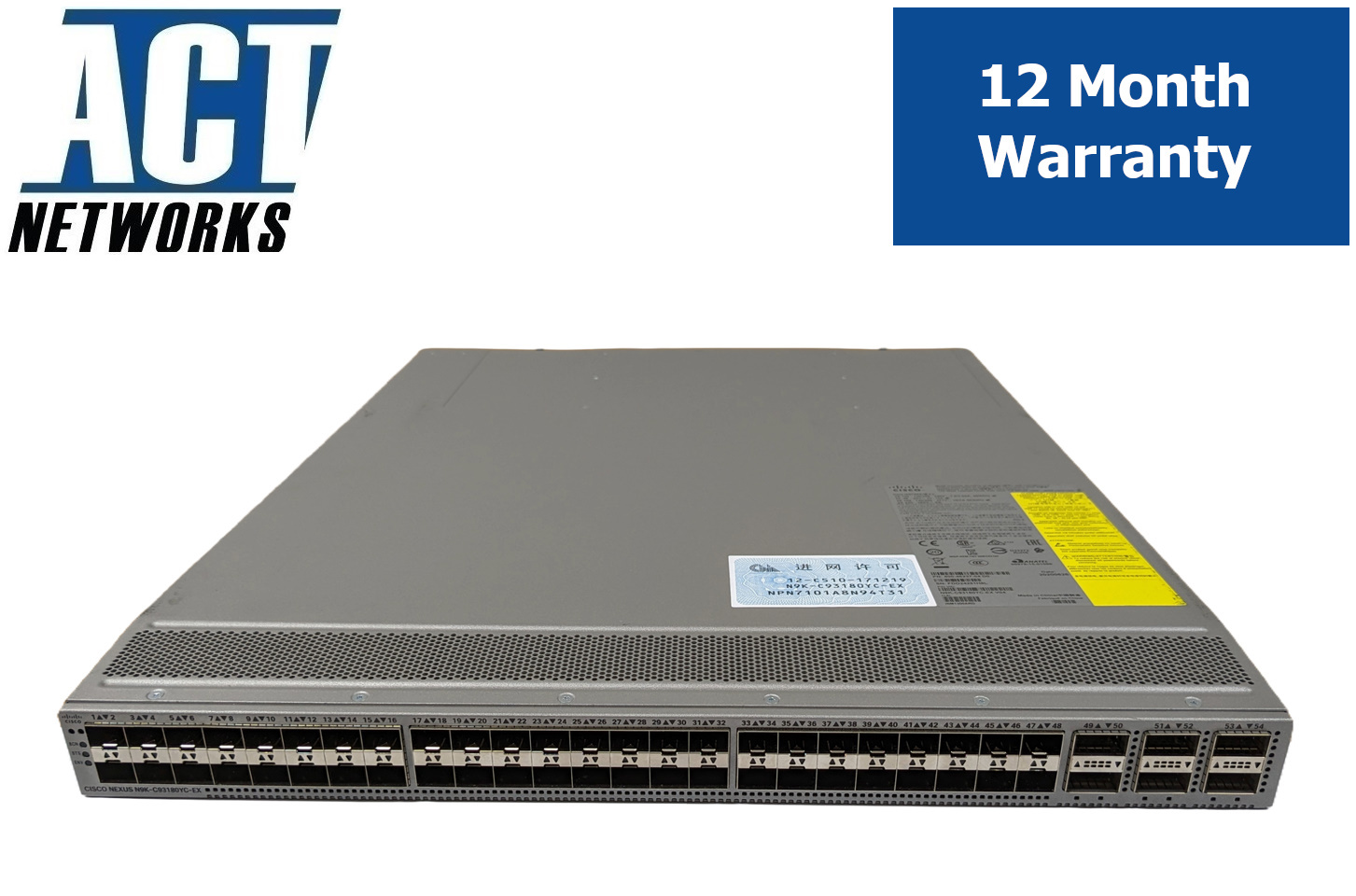

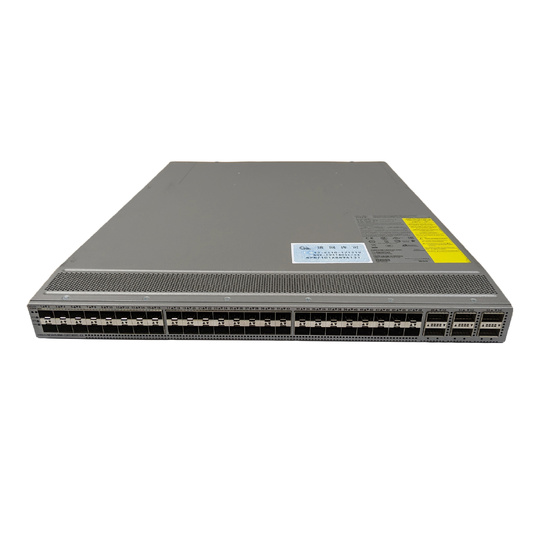

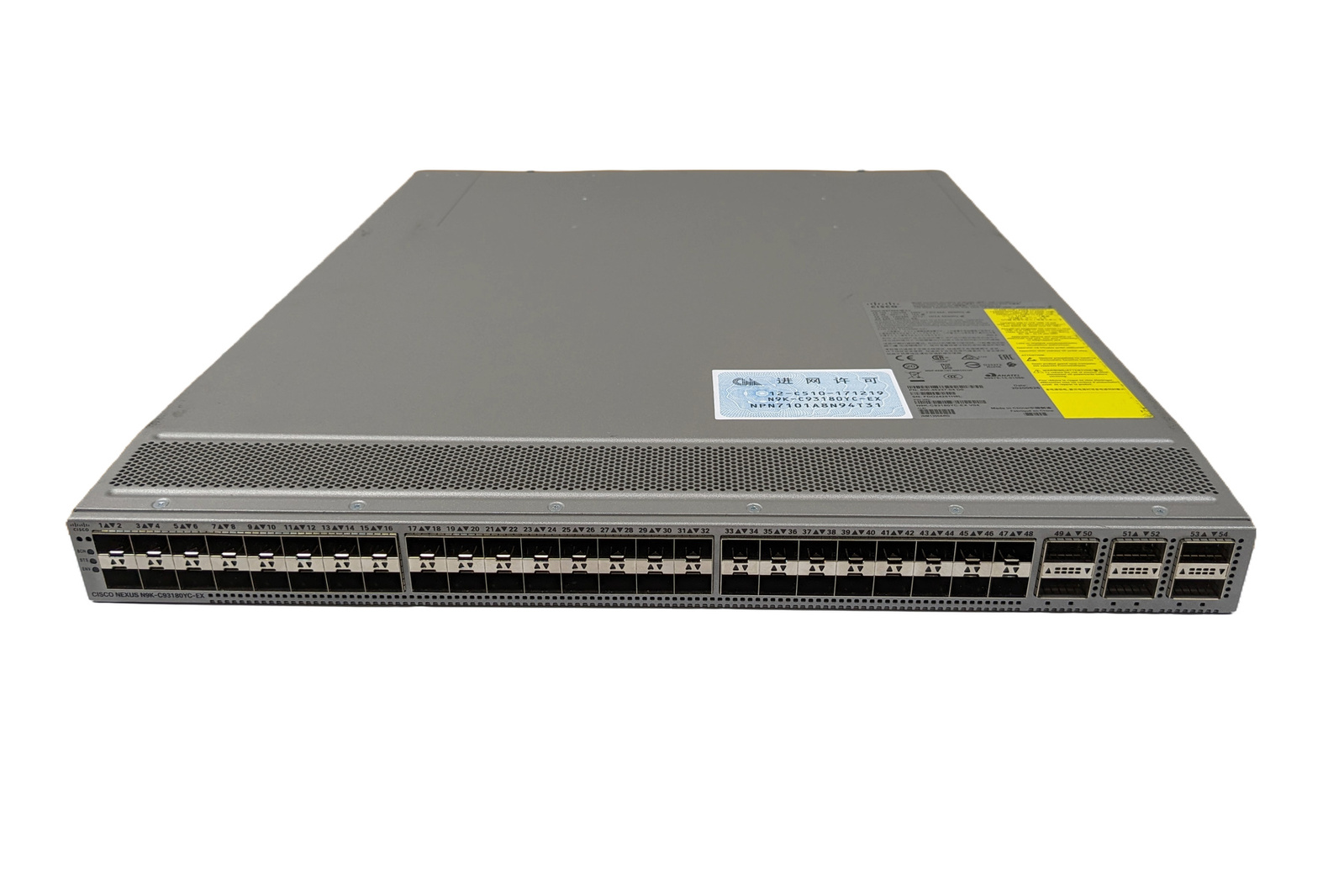

Cisco Nexus N9K-C93180YC-EX 48-Port 1/10/25Gb SFP+ Switch w/ 6x 40/100Gb QSFP28


Available QTY: 0

Notify Me

Calculate Shipping

Type 25 Gigabit Ethernet Switch
Brand Cisco Nexus
Model N9K-C93180YC-EX
Manufacturer Part Number 800-46237-04
Form Factor Rack Mountable
Includes Rack Kit No

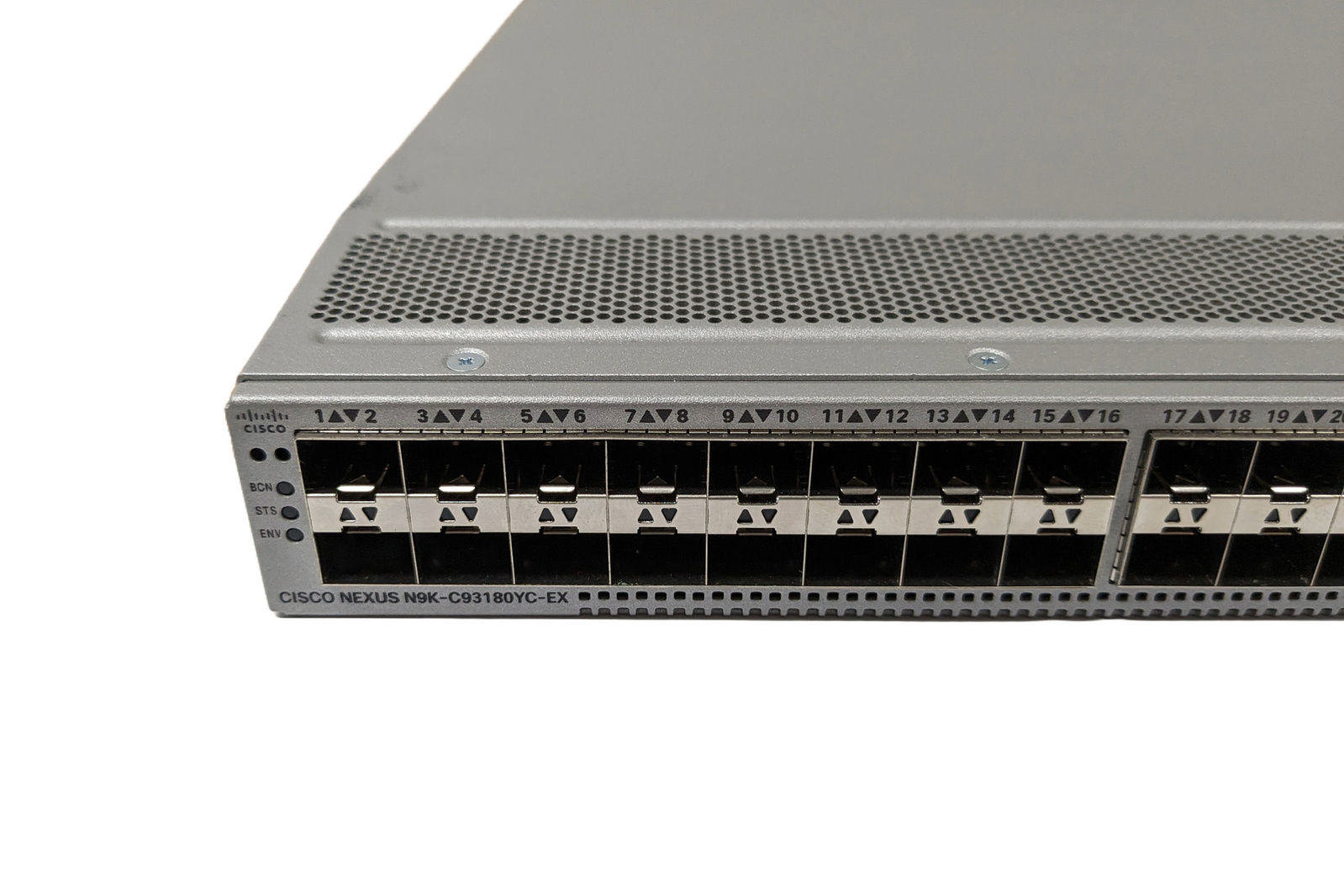

Main Ports 48 x 1/10/25Gb SFP+

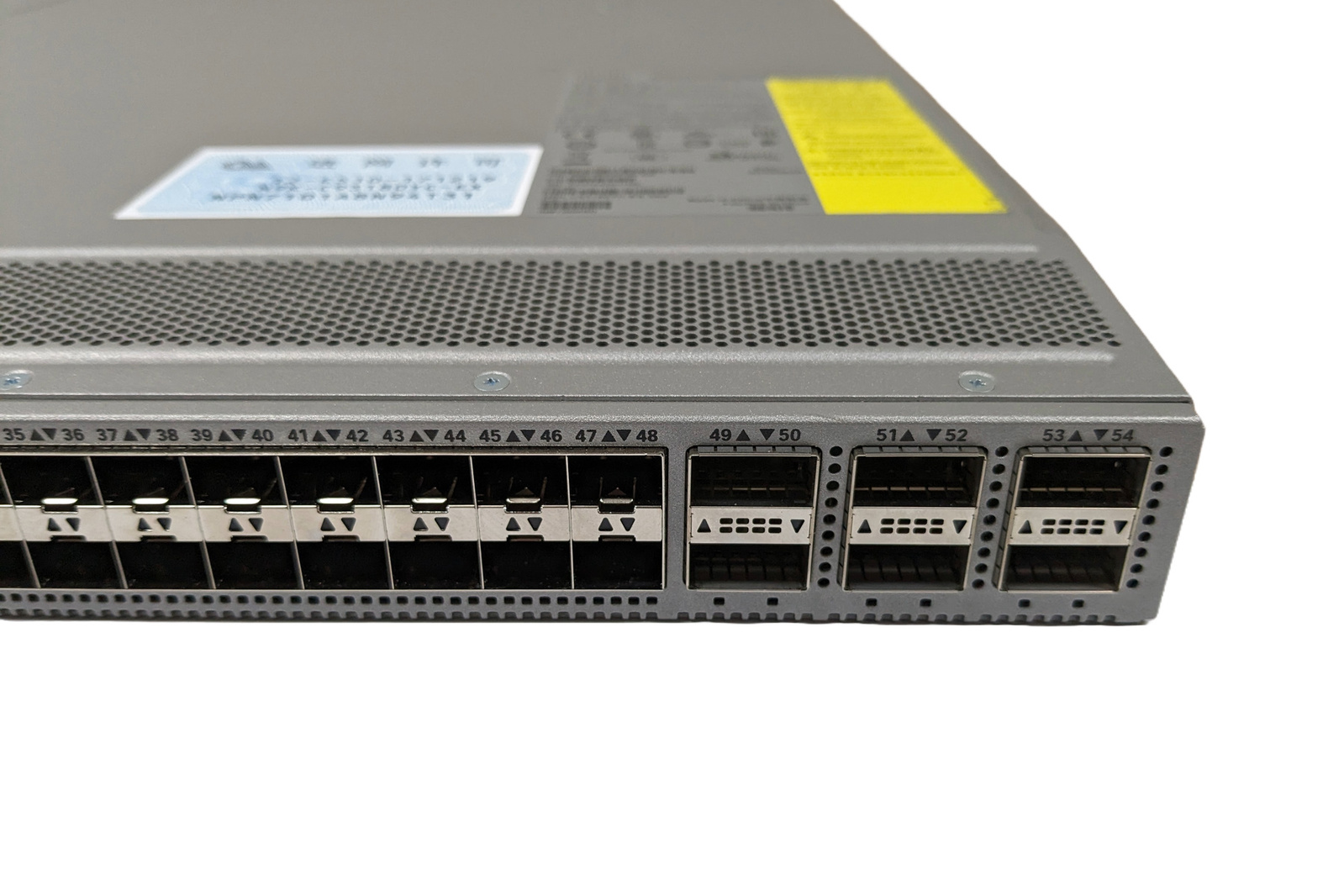

Uplink Ports 6 x 40/100Gb QSFP28
Installed Transceiver Modules None
PoE Support No
PoE Standard N/A
PoE Budget N/A
Network Management Type Managed

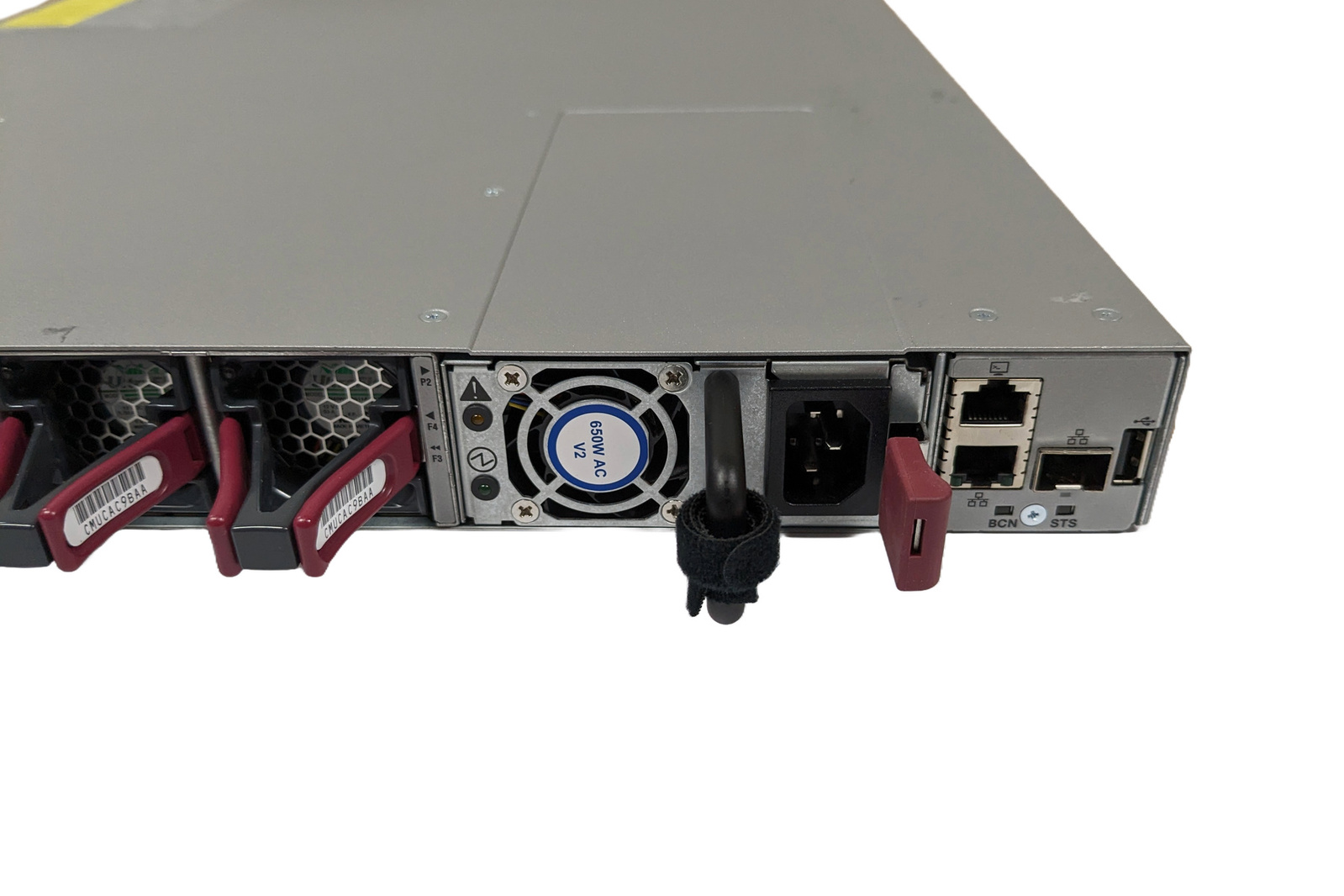

Console Interface RJ45 Serial Console Port
Expansion Module Support No
Installed Expansion Modules N/A
Stackable No
Stacking Module N/A
Fans 4x Hot-Swap

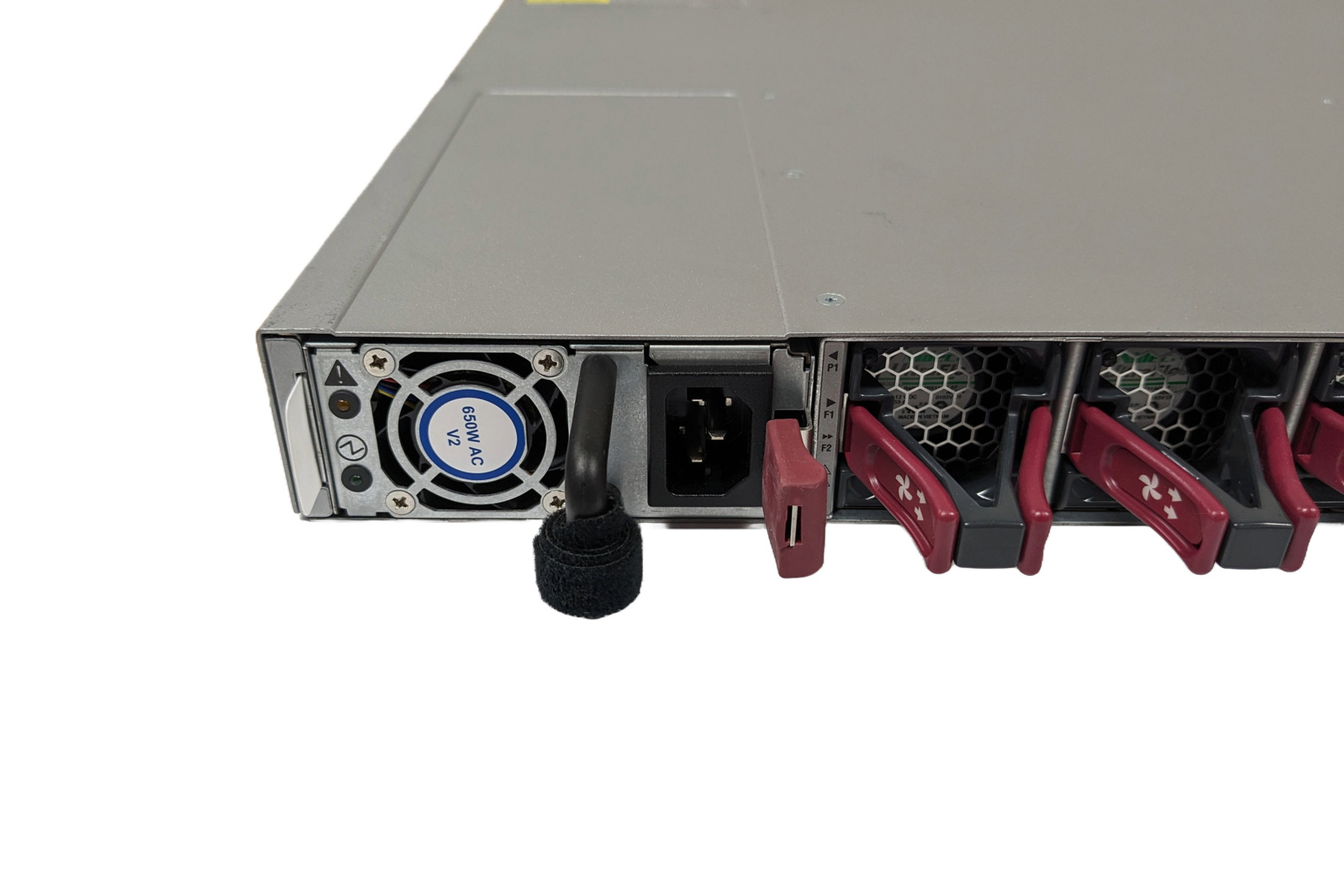

Power Supply 2x Hot-Swap 650W
Hot-Swap PSU Slots 2
Power Cable Type IEC C13 Standard Power Cable
Item condition Used, may have minor marks or scratches

Requires additional rail kit (not included) to mount the switch in a rack.

No licenses installed.


The Cisco Nexus 93180YC-EX Switch is a 1-Rack-Unit (1RU) switch with latency of less than 1 microsecond that supports 3.6 Terabits per second (Tbps) of bandwidth and over 2.6 billion packets per second (bpps). The 48 downlink ports on the 93180YC-EX can be configured to work as 1-, 10-, or 25-Gbps ports, offering deployment flexibility and investment protection. The uplink can support up to six 40- and 100-Gbps ports, or a combination of 1-, 10-, 25-, 40-, 50, and 100-Gbps connectivity, offering flexible migration options. The switch has FC-FEC enabled for 25Gbps, and supports upto 3m in DAC connectivity.

  • Switch
  • Power Cable
  • Tax Invoice
  • 12-Month Return to Base Warranty
