High-density 2-socket rack server that delivers industry-leading performance and efficiency for a wide range of workloads, including virtualisation, collaboration, and bare-metal applications.

Cisco C220 M5 SFF Server (Equivalent to Dell R640 Server)

The UCS C220 M5 SFF server extends the capabilities of Cisco’s Unified Computing System portfolio in a 1U form factor with the 2nd Generation Intel Xeon Scalable Processors, DDR4-3200MHz memory, two 2 PCI Express (PCIe) 3.0 slots, and up to 10 SAS/SATA hard disk drives (HDDs) or solid-state drives (SSDs). The C220 M5 server includes one dedicated internal modular LAN on the motherboard (mLOM) connector for the installation of a Cisco Virtual Interface Card (VIC) or third-party network interface card (NIC), without consuming a PCI slot, in addition to 2 x 10Gbase-T Intel x550 embedded (on the motherboard) LOM ports.

The Cisco UCS C220 M5 server can be used standalone or as part of the Cisco Unified Computing System, which unifies computing, networking, management, virtualization, and storage access into a single integrated architecture, enabling end-to-end server visibility, management, and control in both bare metal and virtualized environments.


Specifications

Make & Model - Cisco UCS C220 M5SX

Form Factor - 1U Rackmount

Drive Bays - 10 Bay 2.5"

Processor - 2x Gold 6130 16C 2.10GHz

Ram - 256GB (8x 32GB PC4-2666V)

Memory Type - DDR4 ECC-Registered

Hard Drive - No HDD (No empty caddies included)

Solid-state Drive - None

RAID Controller - UCSC-RAID-M5 battery-backed write cache

Connectivity - OnBoard

IDSDM - N/A

Adapter Cards - None

Remote Access - CIMC

TPM Module - No

PCIe Slots - 1x Low Profile, 1x High Profile

Operating System - None

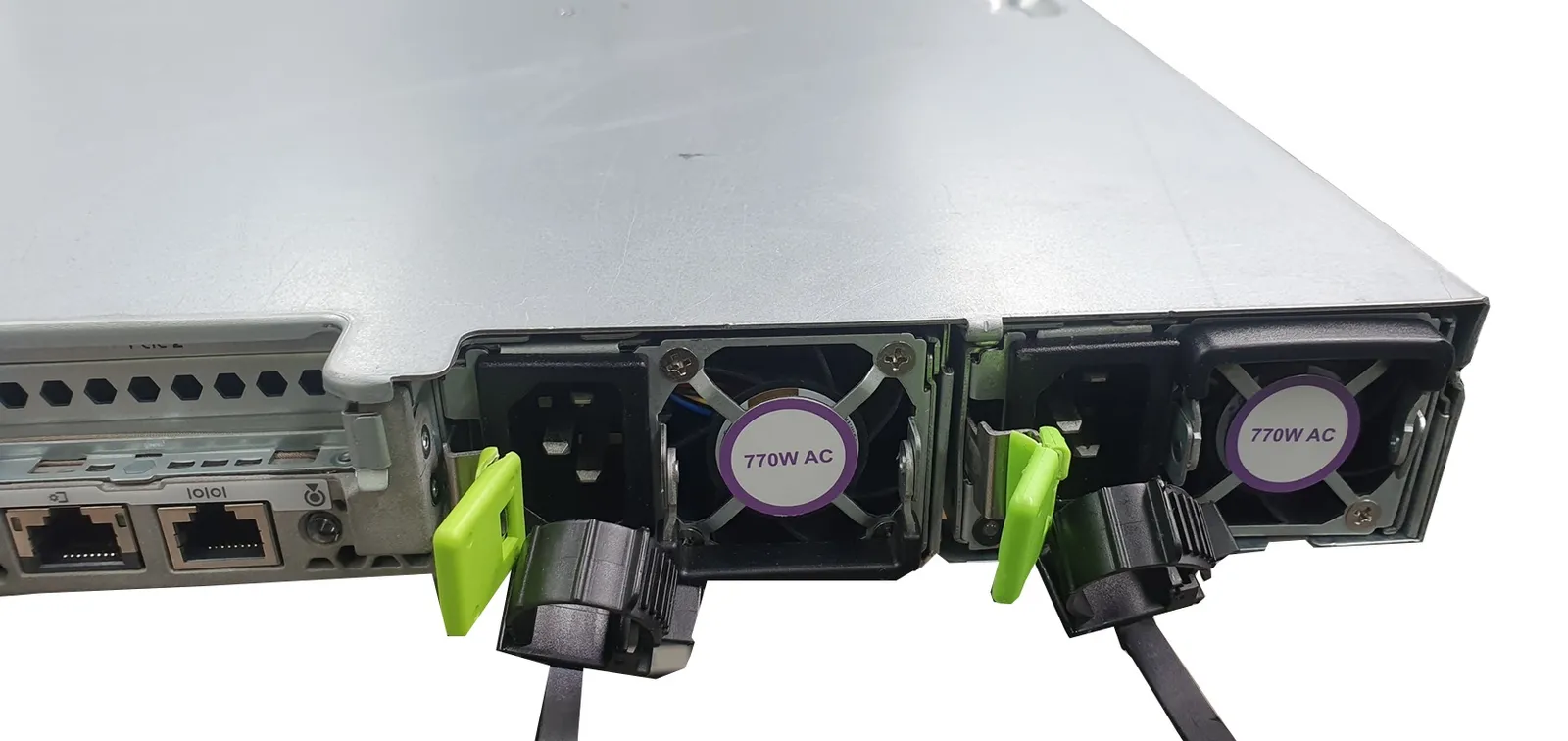

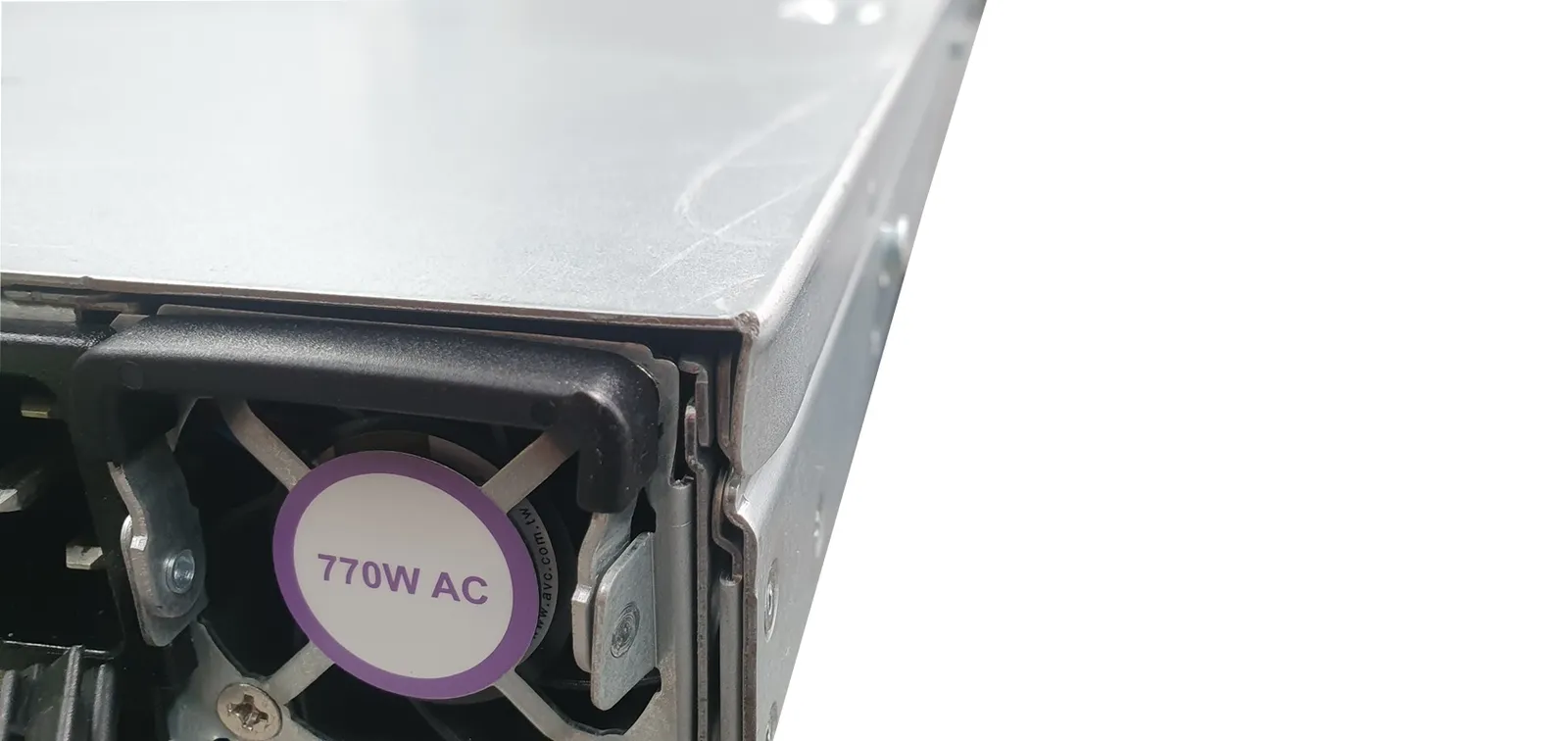

Power Supply -  2x 770 W

Optical Drive -  N/A

Rails -  Included

Bezel Cover -  None included

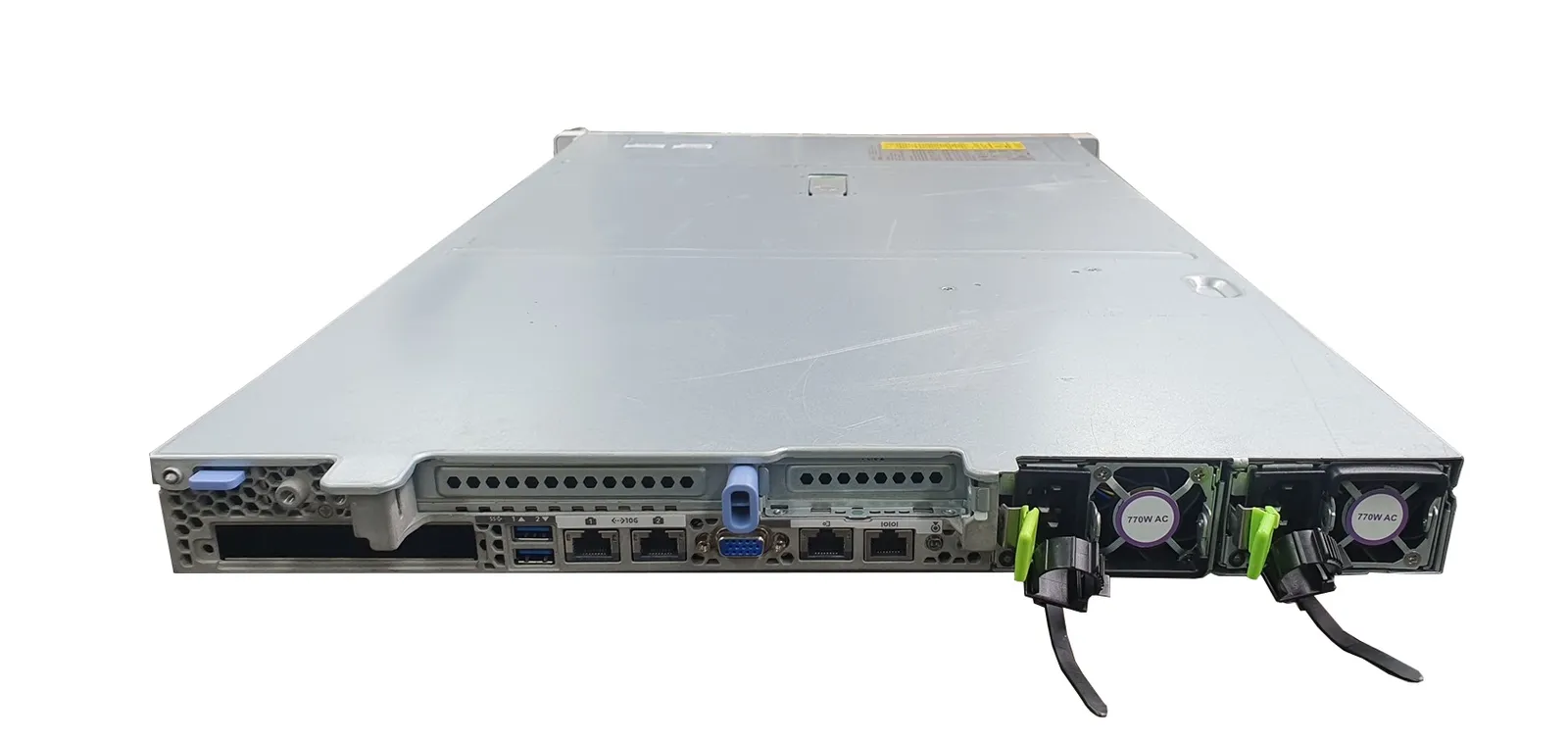

I/O Ports - Front: (1) KVM connector (used with KVM cable that provides two USB 2.0, (1) VGA, (1) serial connector); Back: (2) USB 3.0, (1) Remote management  RJ-45 (CIMC);    (1) VGA, 1 Serial port (RJ-45 connector), (2) Onboard 1/10GE NIC

Condition - Refurbished Grade A

Whats Included - Server + Power Cable

All parts are original unless specified otherwise

• Server
• Power Cable
• Tax Invoice
• 12-Month Return to Base Warranty
