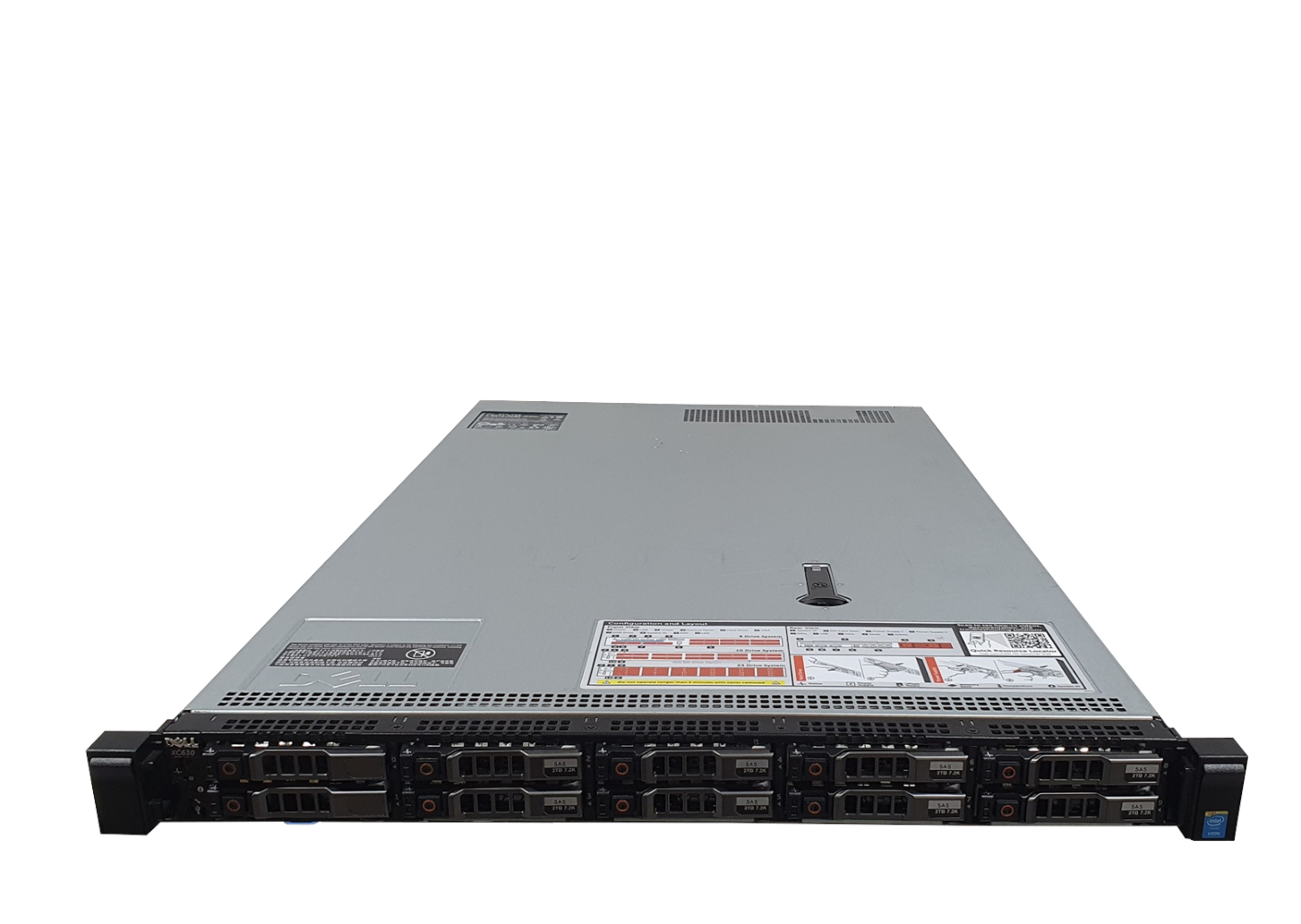

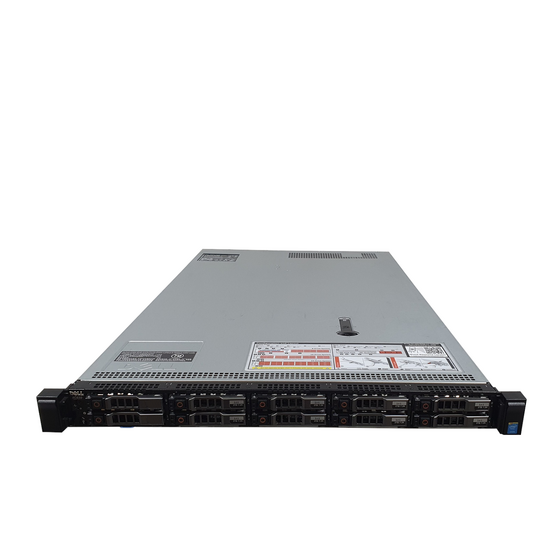

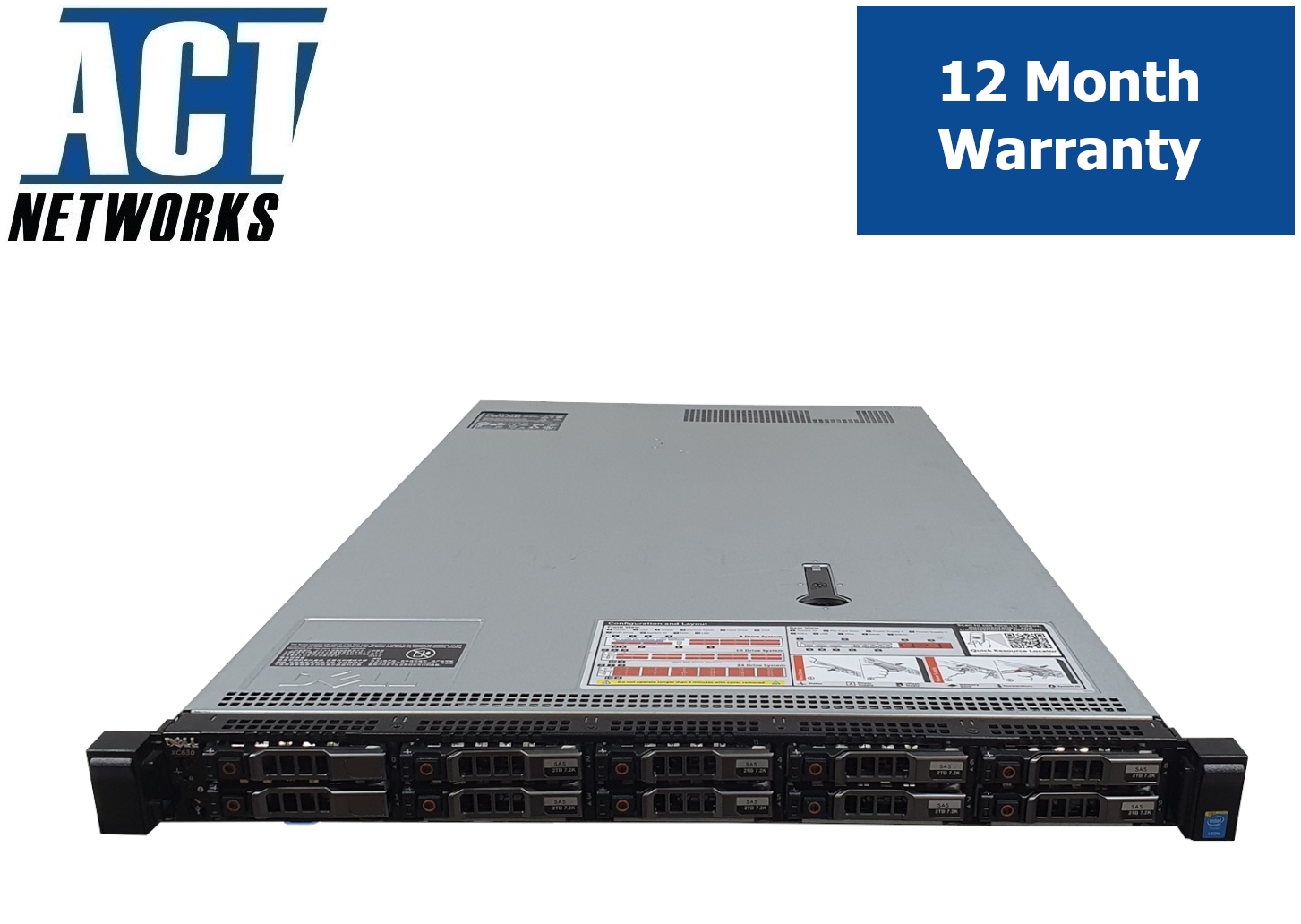

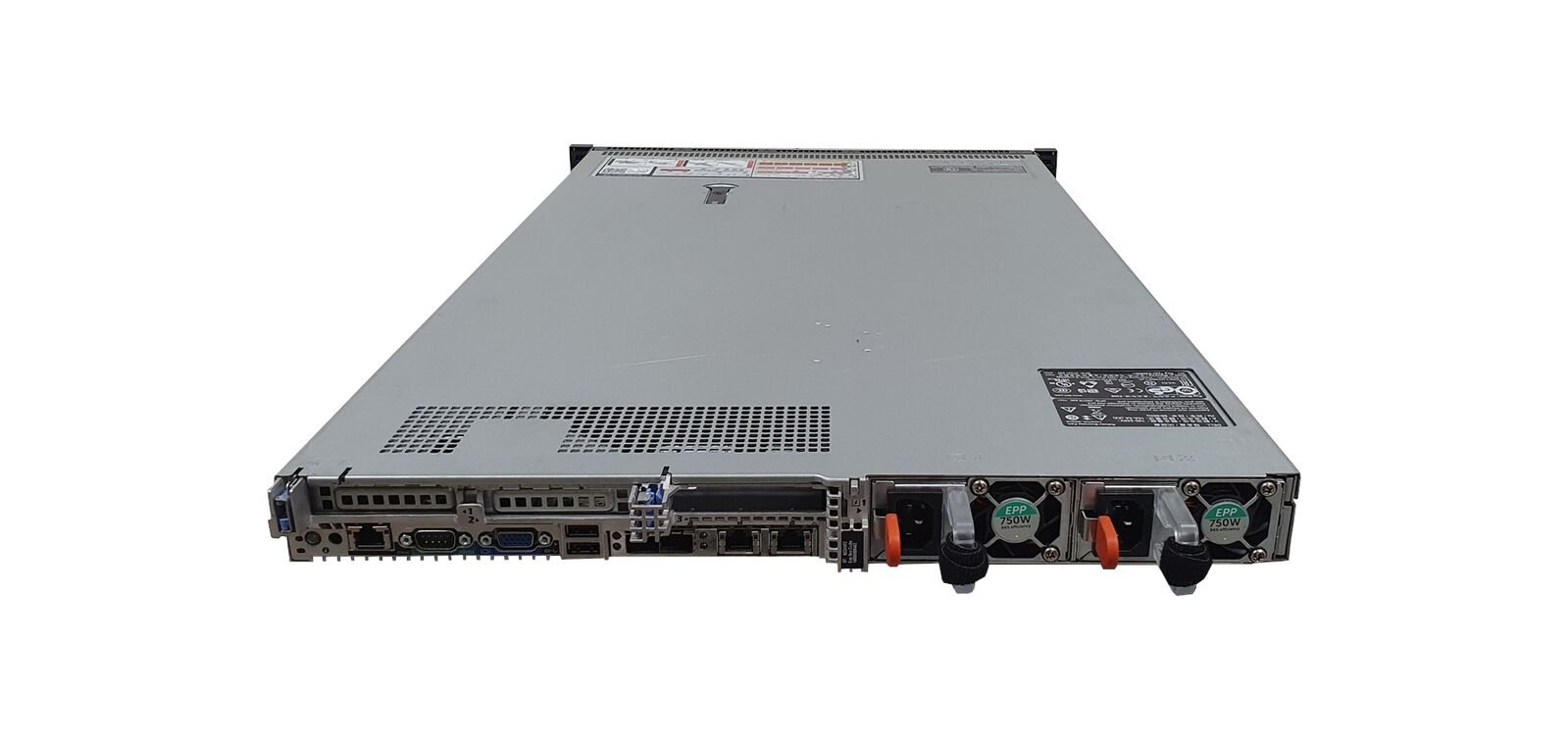

Dell R630 10SFF 2x E5-2698 v4 20C 2.2GHz 512GB Ram H730 2x 120GB SSD, 8x 2TB SAS

Dell R630 * Appliance (XC630-10)	▪ 1U Rackmount ▪ 10-Bay SFF ▪ 3x Low PCIe slot
	▪ Dual Processor Support ▪ Xeon E5-2600 v3/ v4 series ▪ 24 DDR4 DIMM slots ▪ No Onboard RJ45 NIC
	▪ 2x E5-2698 v4 ▪ Base 2.2 GHz / Max Turbo: 3.6 GHz ▪ 20 Cores / 40 Threads ▪ TDP 135 W
	▪ 512GB DDR4 ECC-Registered ▪ 16x 32GB PC4-2133P
	▪ 2x 120GB OEM SATA SSD *¹ ▪ 8x 2TB 7.2K SAS HDD
	▪ PERC H730 NV Cache, Mini-Type
	▪ rNDC - 2x 10Gb SFP+ & 2x 1Gb RJ45 (No SFPs)
	▪ Adapter card - none
	▪ TPM module - v1.2
	▪ Remote Access - iDrac Enterprise
	▪ IDSDM module - included *²
	▪ Dual 750W PSU
	▪ Optical drive - n/a
	▪ Flex bay - n/a
	▪ Rails - none
	▪ Bezel - none
	▪ Used, may have minor marks or scratches
Notes	* ▪ Appliance (XC630-10) repurposed ▪ XC630 front badge logo ▪ Boots as R630 (DBE) ▪ Fully functional, equivalent to R630 ¹ ▪ Drive caddy labels may vary or be missing ▪ Repurposed SSDs, non-Dell part numbers ² ▪ SD cards required (not included) ▪ To use the SD module, you will need to first enable it in the BIOS settings

(5202)

R630 Dell 13th generation of PowerEdge servers 1U two-socket processor with up to 10 2.5" drive bay rackmount configuration supports E5-2600 v4 Series of Intel Xeon processors. Dramatically boost application performance with up to 24 ECC DDR4 memory modules, with up to 22 cores per processor, and quad-port 10GbE rNDC enabling super-fast processing for compute-intensive tasks. With computing capability previously only seen in 2U servers, the ultra-dense R630 delivers an impressive solution offering numerous features to boost performance, improve scalability, and reduce costs, offering improved performance and pay-as-you-grow flexibility along with new features that improve server management capability, virtualization, and business processing environments.

Server
Power Cable
Tax Invoice
12-Month Return to Base Warranty
