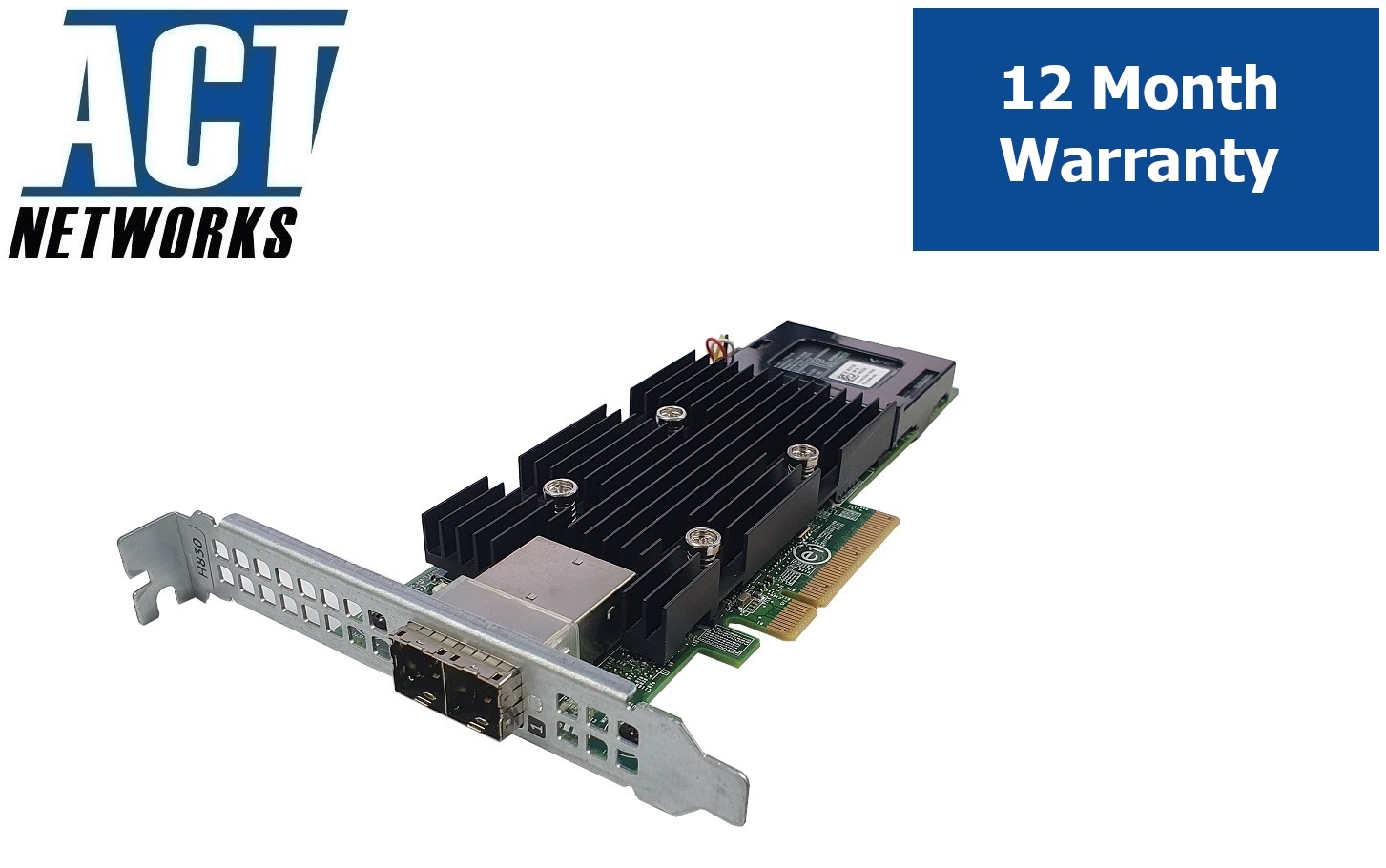

Dell WH3W8 NR5PC PERC H830 8 Port 12G External RAID Controller High Profile R440 R540 R640 R740


Available QTY: 1

Calculate Shipping

Brand Dell
Model PERC H830
Part Number WH3W8, NR5PC
Device Type External RAID Controller - plug-in card
Form Factor 8-lane, PCI Express 3.0 compliant
Bracket Profile High Profile
Interface  3Gb/s, 6Gb/s & 12Gb/s SAS SSD support
SED drive support
Physical ports Two mini-SAS HD external SFF8644
NV Cache 2GB battery-backed write cache
Raid Levels RAID levels 0, 1, 5, and 6
RAID spans 10, 50, and 60
Non-RAID (JBOD mode)
Solution provided Eight-port (2- x4 connectors) external SAS
solution for performance-hungry external storage
Key features OCE, RLM, 4K/ UNMAP/ S.M.A.R.T. support
Global and dedicated hot-spare with Revertible Hot-Spare
SAS controller LSI SAS 3108
RAID management CTRL-R, Dell OpenManage Storage, PERC CLI
Additional management: UEFI (HII), CEM
Compatibility Rackmount/ Tower Servers
Cables None included
Item Condition Used
Qty 1
Notes *¹ ▪ The adapter may have a low-profile part
      number as the card bracket was swapped to a
      high-profile bracket.


The PowerEdge RAID Controller (PERC) H830, with eight external ports (2- x4 connectors), delivers two PowerPC processor cores and a 72-bit DDR3 interface that drives 2GB cache memory. This controller is ideal for configuring external storage enclosures with high-performance SAS hard drives and application-accelerating solid-state drives. The PERC H830 exploits the potential of 12Gbps SAS SSDs for unsurpassed performance and enterprise-class reliability.

  • Card
  • Tax Invoice
  • 12-Month Return to Base Warranty
