Form Factor | Tower Workstation |
Chipset | Intel C612 |
Processor Sockets | Dual Processor Support |
Processor | Xeon E5-2699 v3 |
Processor Speed | Base: 2.3GHz, Max: 3.6GHz |
Processor Cores | 18 |
Processor Threads | 36 |
DIMM Size | 8x 16GB PC4-2133P (8 of 16 populated) |
Memory | 128GB DDR4 ECC-Registered |
Storage | ▪ 512GB M.2 NVMe SSD (in Z Turbo PCIe adapter) ▪ 2TB SATA HDD (1 of 4 populated - 3.5") |
RAID Controller | Integrated SATA 6G Integrated LSI SAS 2308 (RAID 0, 0 Data, 1, 5, and 10) |
Graphics | Nvidia Quadro M6000 12GB GDDR5 |
Display Connectors | 4x DisplayPort v1.2 + DVI-I DL |
Display Resolution | ▪ Max DP v1.2: 4096x 2160 at 60Hz ▪ Max DVI-I DL: 2560x 1600 at 60Hz |
Operating System | Windows 11 Pro |
Additional Adapters | None |
Optical | DVDRW Slim |
Power Supply | 1125 W |
Drive Bays | ▪ 1x Slim ODD ▪ 2x 5.25" ▪ 4x 3.5" |
Expansion Slots | ▪ 3x PCIe3 x16 ▪ 2x PCIe3 x8 ▪ 1x PCIe3 x4 ▪ 1x PCIe2 x1 |
M.2 (Wi-Fi) slot | n/a |
Ports | ▪ 6 SATA ▪ 8 SAS |
I/O Ports |
Front: |
Case Specifications | ▪ Sizes: 44.4x 20.3x 52.5cm (HxWxD) ▪ Starting Weight: 21.1 Kg |
Item Condition | Used, may have minor marks or scratches |
Notes | |
(5310)

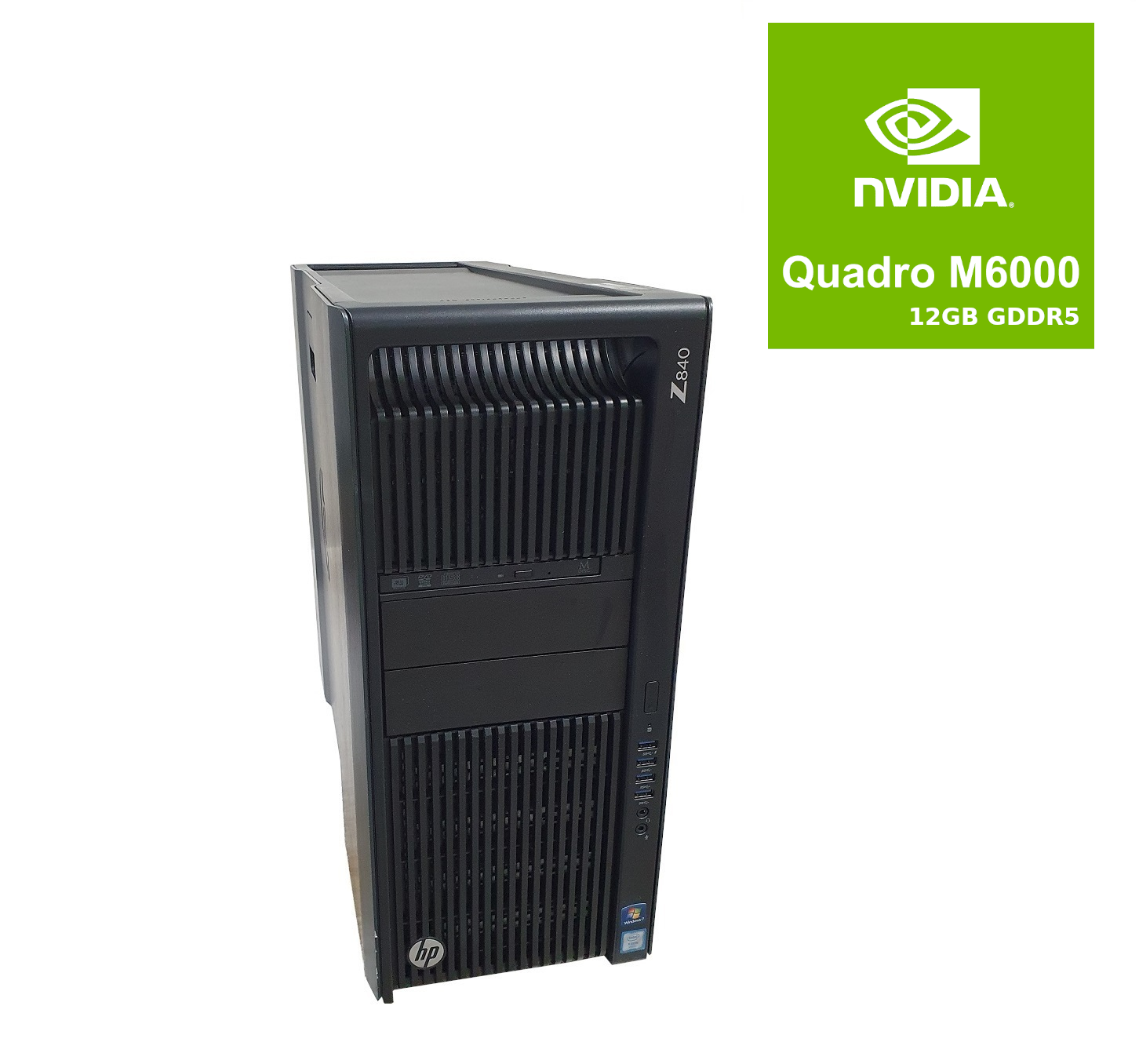

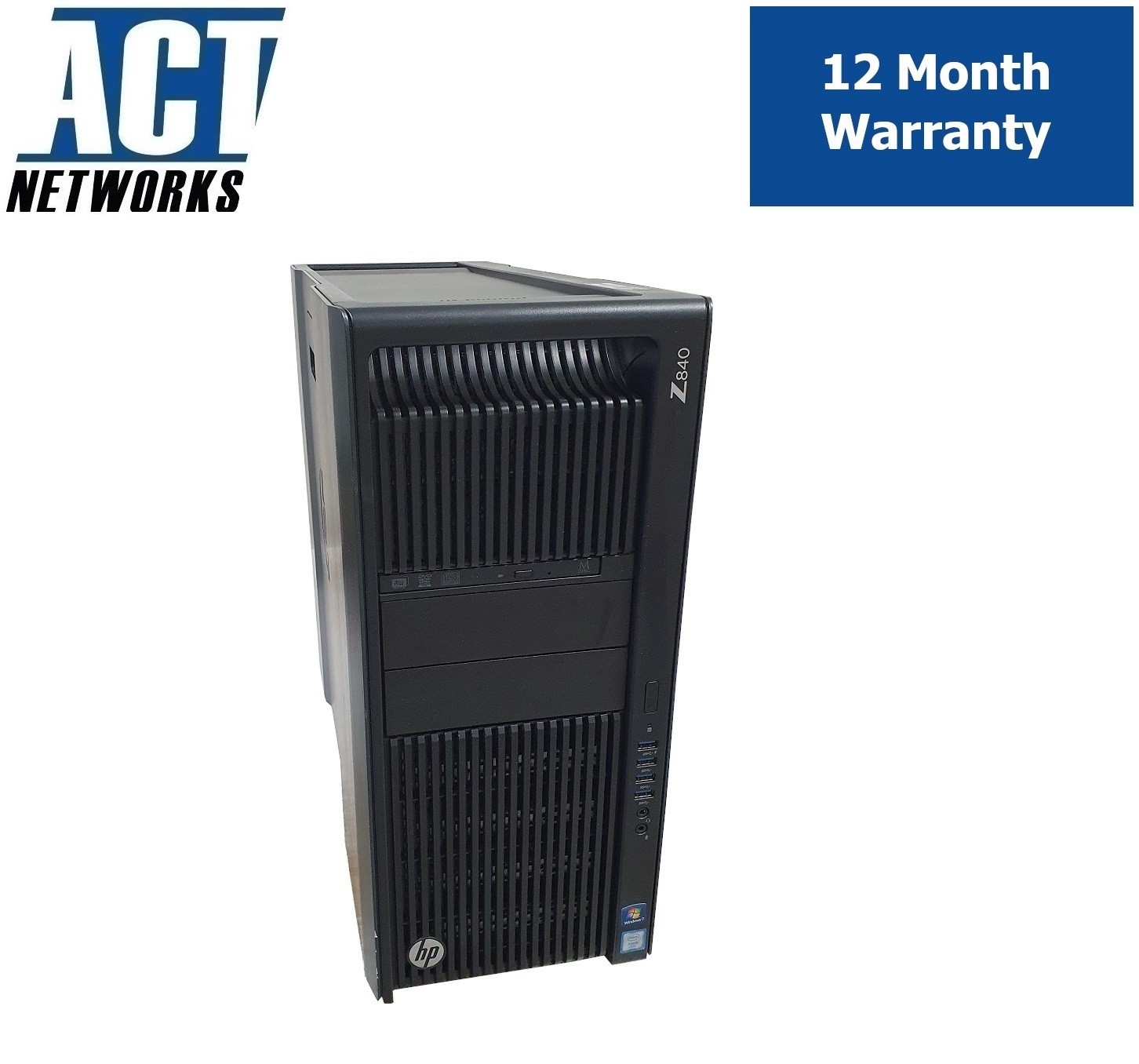

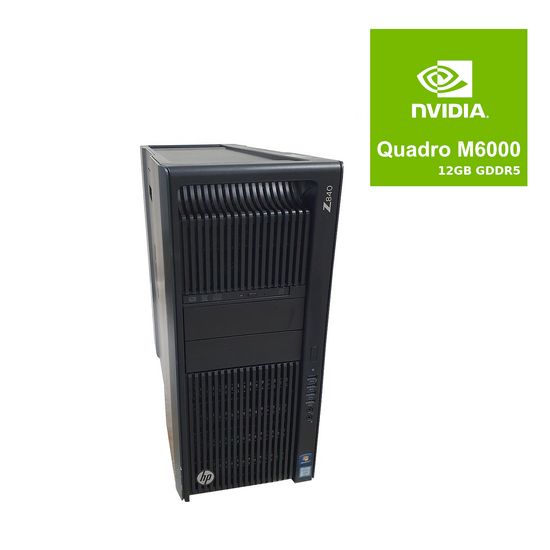

Push your computing boundaries with the HP Z840 Workstation, which helps you keep up with your biggest projects. Built for high-end computing and visualization, it delivers outstanding performance in one of the industry’s most expandable chassis.
