Brand | Lenovo |
Product Series | RackSwitch |
MT- Model | 7159-HC1 |
Form Factor | Rack-mountable |
Switch Mounting | Rack ears included |
Product Type | Gigabit Ethernet |
Connector Type | RJ45, Fibre, DAC |
Transceiver Modules | None Included |
Ethernet Ports | 48 |
SFP Ports | 4 |
PoE Support | No |
Advanced Switching | Layer 2/3 |
Performance | - Up to 176 Gbps aggregated throughput - Up to 176 Gbps aggregated throughput - Up to 132 Million packets per second (Mpps) - Up to 12,288-byte jumbo frames |
Manageable | 1x RS-232 port (Mini-USB) 1x USB port (for additional firmware, log, and configuration files storage) |
Switching Modules | N/A |
Stackable | Stackable |
Power Supply | 2x 450 W |
Redundant Power Supply | Yes |
Fan Modules | 2+1 redundant (Rear to front airflow) |
Module Slots | N/A |
Fan Slots | 4 (Optional additional fan for 2+2 redundancy) |
Rack Mounting Kit | N/A |
Qty | 1 |
Item condition | Used, may have minor marks or scratches |
Notes | - Optional additional fan not included |
(3887)
The Lenovo RackSwitch G8052 is a top-of-rack data center switch that delivers unmatched line-rate Layer 2/3 performance. It has 48x 10/100/1000BASE-T RJ-45 ports and four 10 Gigabit Ethernet SFP+ ports (it also supports 1 GbE SFP transceivers) and includes hot-swap redundant power supplies and fans as standard, which minimizes your configuration requirements. Unlike most rack equipment that cools from side to side, the G8052 has rear-to-front or front-to-rear airflow that matches server airflow.

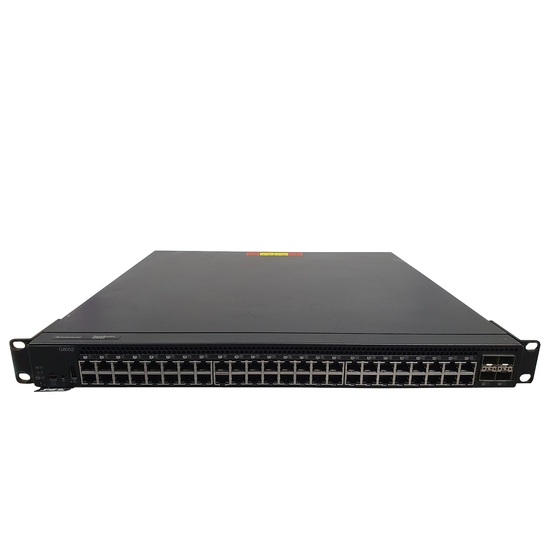

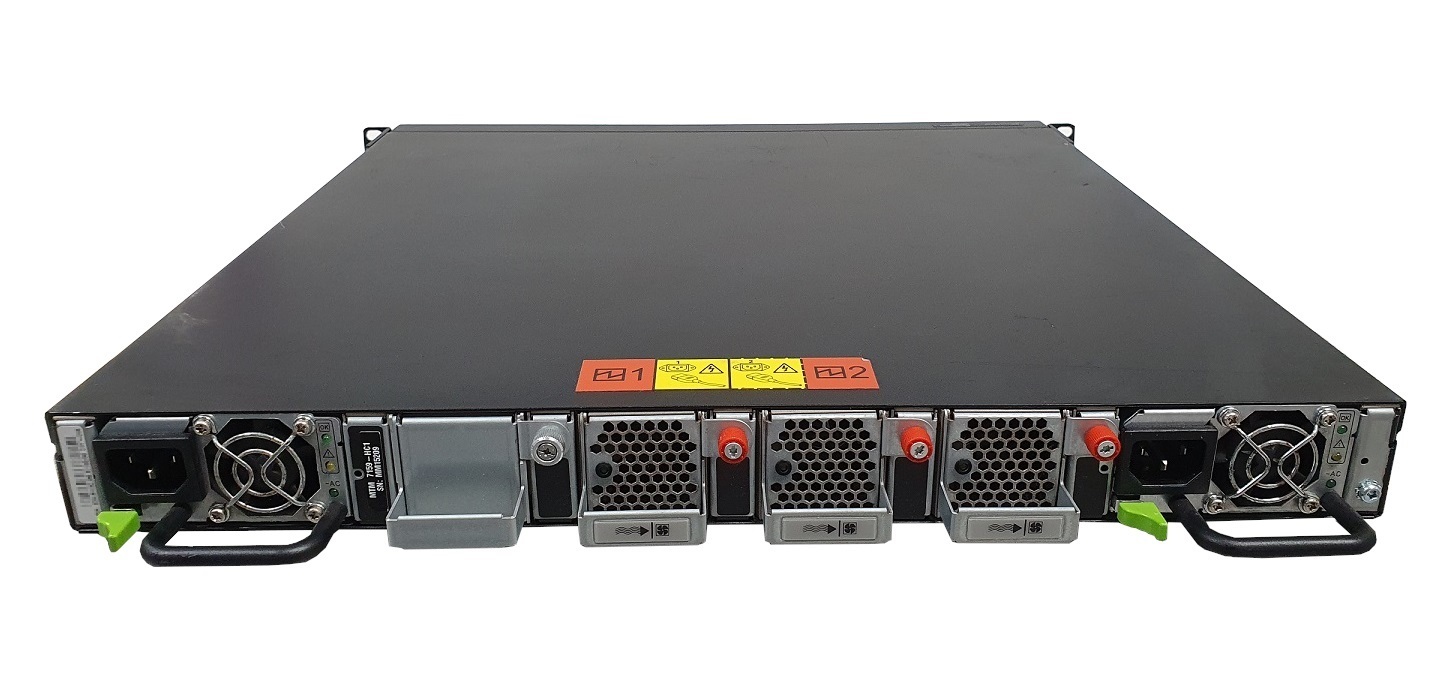

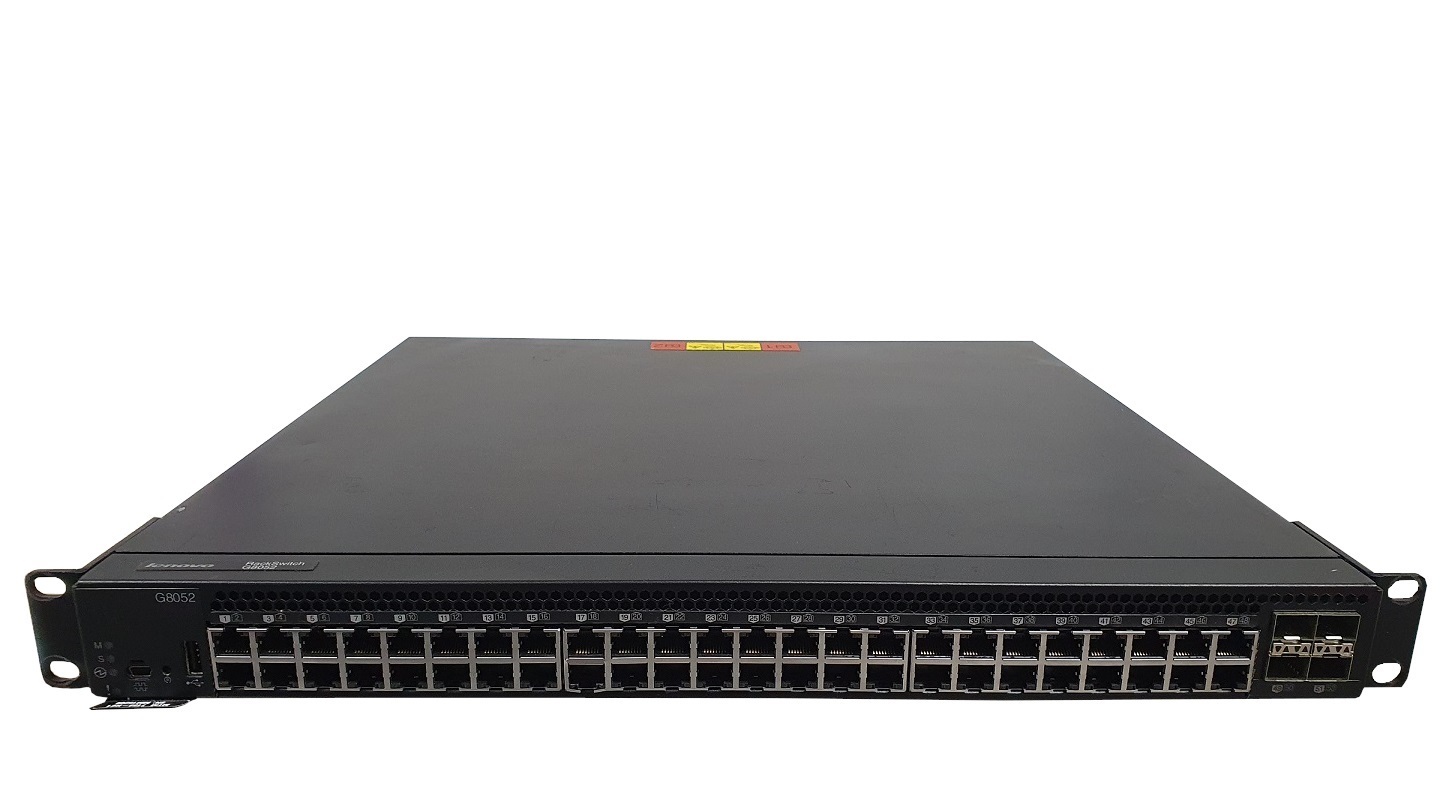

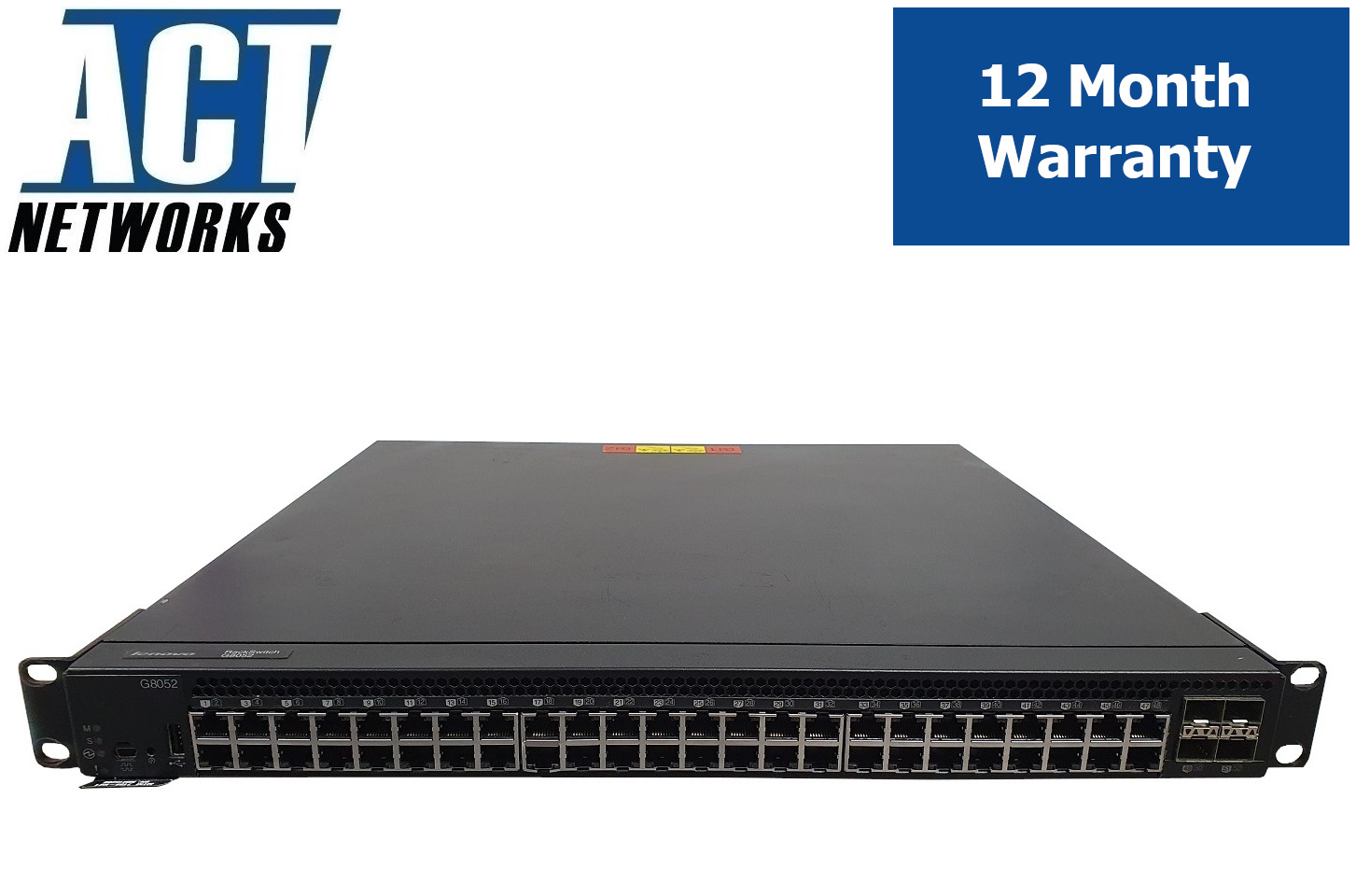

Lenovo 7159-HC1 RackSwitch G8052 Gigabit Ethernet Switch
The Lenovo RackSwitch G8052 is a top-of-rack data center switch that delivers unmatched line-rate Layer 2/3 performance. It has 48x 10/100/1000BASE-T RJ-45 ports and four 10 Gigabit Ethernet SFP+ ports (it also supports 1 GbE SFP transceivers) and includes hot-swap redundant power supplies and fans as standard, which minimizes your configuration requirements. Unlike most rack equipment that cools from side to side, the G8052 has rear-to-front or front-to-rear airflow that matches server airflow.
Specifications
Make & Model - Lenovo RackSwitch G8052
Product Series - RackSwitch
MT- Model - 7159-HC1
Form Factor - 1U Rack
Switch Mounting - Rack ears included
Product Type - Gigabit Ethernet
Connector Type - RJ45, Fibre, DAC
Transceiver Modules - None included
Ethernet Ports - 48
SFP Ports - 4
PoE Support - No
Advanced Switching - Layer 2/3
Performance - Up to 176 Gbps aggregated throughput
- Up to 176 Gbps aggregated throughput
- Up to 132 Million packets per second (Mpps)
- Up to 12,288-byte jumbo frames
Manageable - Yes
Switching Modules- N/A
Stackable - Stackable
Power Supply - 2x 450 W
Redundant Power Supply - Yes
Fan Modules - 3
Module Slots - N/A
Fan Slots - 4
Power Supply Slots - 2
Rack Mounting Kit - None included
Power Cable Type - IEC C13 Standard
Condition - Refurbished Grade A
Optional additional fan not included
Whats Included - Switch + Power Cable
All parts are original unless specified otherwise
